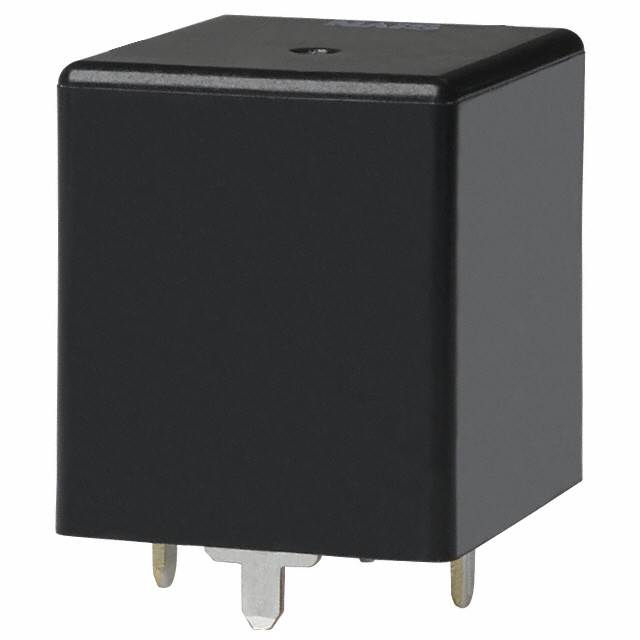

CB1-T-P-12V

Active

Panasonic Electric Works

RELAY AUTOMOTIVE SPDT 40A 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY AUTOMOTIVE SPDT 40A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Must Operate Voltage	Switching Voltage	Operate Time	Coil Current	Termination Style	Contact Form	Coil Type	Mounting Type	Coil Resistance	Coil Power	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Termination Style
Panasonic Electric Works CB1-T-P-12V	15 ms	7 VDC	14 VDC	15 ms	117 mA	PC Pin	SPDT (1 Form C)	Non Latching	Through Hole	103 Ohms	1.4 W	Cadmium Free Silver Alloy	125 °C	-40 °C	Sealed - Fully	12 VDC	1.2 VDC	40 A
Panasonic Electric Works CB1-T-D-M-12V		7 VDC	14 VDC	15 ms	117 mA	Quick Connect	SPDT (1 Form C)	Non Latching	Chassis Mount	103 Ohms	1.4 W	Cadmium Free Silver Alloy	125 °C	-40 °C	Diode Sealed - Fully	12 VDC	1.2 VDC	40 A	0.25 " 0.375 "
Panasonic Electric Works CB1-T-12V	15 ms	7 VDC	14 VDC	15 ms	117 mA	Plug In Quick Connect - 0.250" (6.3mm)	SPDT (1 Form C)	Non Latching	Socketable	103 Ohms	1.4 W	Cadmium Free Silver Alloy	125 °C	-40 °C	Sealed - Fully	12 VDC	1.2 VDC	40 A
Panasonic Electric Works CB1-T-M-24V	15 ms	14 VDC	28 VDC	15 ms	75 mA	Quick Connect	SPDT (1 Form C)	Non Latching	Chassis Mount	320 Ohms	1.8 W	Cadmium Free Silver Alloy	125 °C	-40 °C	Sealed - Fully	24 VDC	2.4 VDC	20 A	0.25 " 0.375 "
