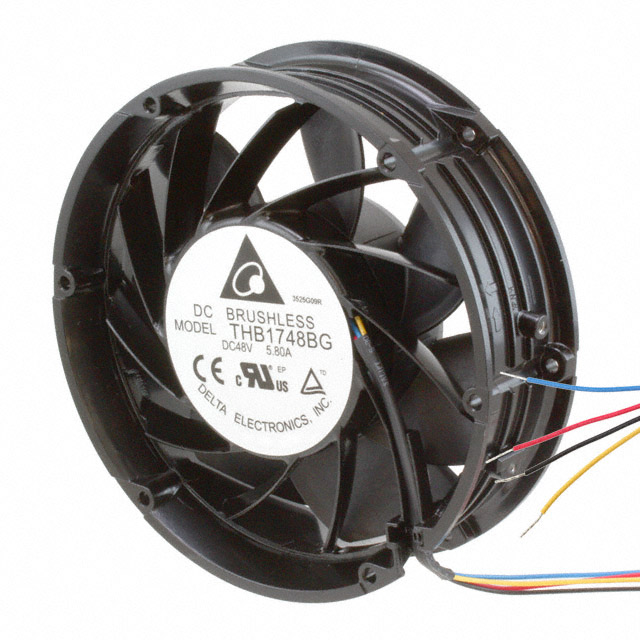

THB1748BG

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 36V TO 56V 607.07CFM 75DB 172 X 50.8MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 36V TO 56V 607.07CFM 75DB 172 X 50.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	THB1748BG

Air Flow	607 CFM
Air Flow	17 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	3.5 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	75 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	168 W
RPM	8000 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	1030.3 Pa
Static Pressure	4.136 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	36 VDC
Weight	952.5 g
Weight	2.1 lb
Width [y]	2 "

DC FAN AXIAL BALL BEARING 48V 36V TO 56V 607.07CFM 75DB 172 X 50.8MM

Part	Air Flow	Air Flow	Termination	Static Pressure	Static Pressure	Bearing Type	Approval Agency	Weight	Weight	Power (Watts)	Material - Frame	Material - Blade	Lifetime @ Temp.	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Voltage - Rated [custom]	Width [y]	Current Rating (Amps)	Fan Type	Voltage Range [Min]	Voltage Range [Max]	RPM	Features
Delta Electronics THB1748BG	607 CFM	17 m³/min	4 Wire Leads	1030.3 Pa	4.136 in H2O	Ball	CE, cURus, TUV	952.5 g	2.1 lb	168 W	Aluminum	Plastic	70000 Hrs	Round	172 mm	70 °C	70 °C	-10 °C	-10 °C	75 dB(A)	48 VDC	2 "	3.5 A	Tubeaxial	36 VDC	56 VDC	8000 RPM	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Round - 172mm Dia Ball 607.0 CFM (17.00m³/min) 4 Wire Leads
