ORWH-SH-105D1F,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ORWH-SH-105D1F,000 |
|---|---|
| Approval Agency | cURus, TUV |
| Coil Current | 71.4 mA |
| Coil Insulation | Class F |
| Coil Resistance | 70 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Zinc Oxide (AgZnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2770 VA, 280 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 277 VAC, 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.01 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.66 | |||
| 40 | $ 1.62 | |||
| 80 | $ 1.55 | |||
| 230 | $ 1.46 | |||
| 440 | $ 1.41 | |||
| 945 | $ 1.34 | |||
| 4900 | $ 1.22 | |||
Description
General part information
ORWH-SH Series

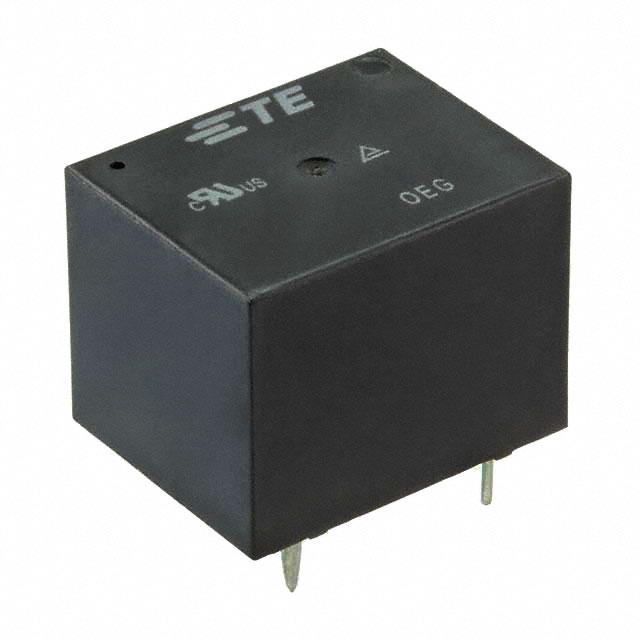

General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
