Q-1U0480003006i

Active

Amphenol Custom Cable

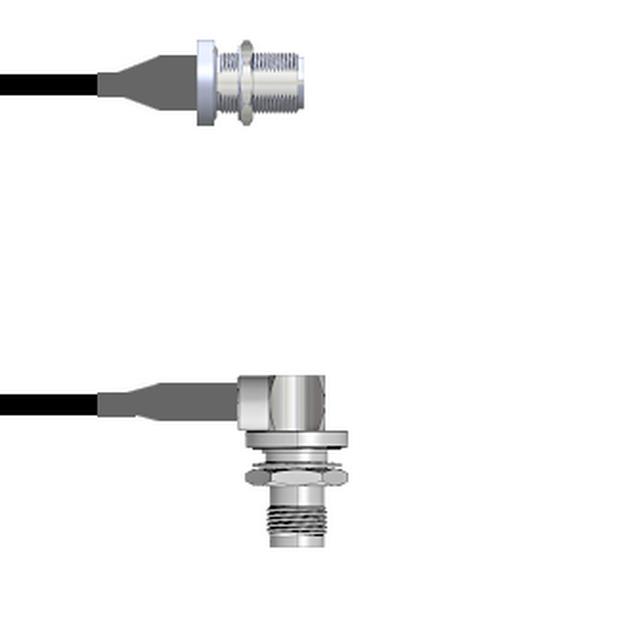

CBL ASSY NTYPE-TNC JACK-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U0480003006i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U0480003006i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms

Q-1U0480 Series

Part	2nd Connector Mounting Feature	Overall Impedance	1st Connector Mounting Feature	Length	Length	Length	1st Connector	Frequency - Max [Max]	1st Contact Gender	Color	Features	2nd Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Type	2nd Connector
Amphenol Custom Cable Q-1U0480003048i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	1200 mm	4 ft	48 in	N-Type Jack	11 GHz	Female	Black	Shielded	Female	Panel Mount	Panel Mount	RG-174	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480005060i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	1.5 m	5 ft	5 '	N-Type Jack	11 GHz	Female	Copper	Shielded	Female	Panel Mount	Panel Mount	RG-316	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480005003i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	76.2 mm		3 in	N-Type Jack	11 GHz	Female	Copper	Shielded	Female	Panel Mount	Panel Mount	RG-316	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480005072i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	1.8 m	6 ft	72 in	N-Type Jack	11 GHz	Female	Copper	Shielded	Female	Panel Mount	Panel Mount	RG-316	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480003003i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	76.2 mm		3 in	N-Type Jack	11 GHz	Female	Black	Shielded	Female	Panel Mount	Panel Mount	RG-174	TNC Jack Right Angle
Amphenol Custom Cable Q-1U04800031.5M	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	1.5 m	4.9 ft	59.1 in	N-Type Jack	11 GHz	Female	Black	Shielded	Female	Panel Mount	Panel Mount	RG-174	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480005012i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	304.8 mm		12 "	N-Type Jack	11 GHz	Female	Copper	Shielded	Female	Panel Mount	Panel Mount	RG-316	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480003.75M	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	750 mm		29.53 "	N-Type Jack	11 GHz	Female	Black	Shielded	Female	Panel Mount	Panel Mount	RG-174	TNC Jack Right Angle
Amphenol Custom Cable Q-1U04800051.5M	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	1.5 m	4.9 ft	59.1 in	N-Type Jack	11 GHz	Female	Copper	Shielded	Female	Panel Mount	Panel Mount	RG-316	TNC Jack Right Angle
Amphenol Custom Cable Q-1U0480003006i	Bulkhead - Front Side Nut	50 Ohms	Bulkhead - Front Side Nut	152.4 mm		6 in	N-Type Jack	11 GHz	Female	Black	Shielded	Female	Panel Mount	Panel Mount	RG-174	TNC Jack Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 121.49
		25	$ 119.20
		50	$ 116.91
		100	$ 114.63
		250	$ 112.34

Description

General part information

Q-1U0480 Series

Cable Assembly Coaxial N-Type to TNC RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
