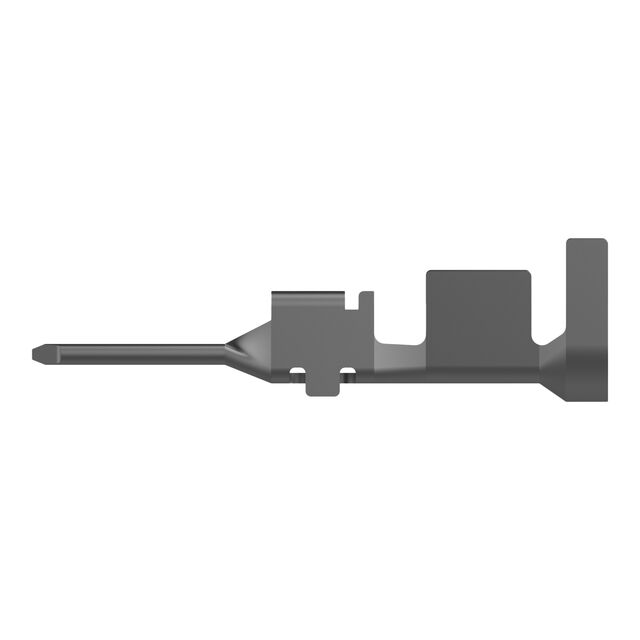

1746974-1

Active

TE Connectivity Raychem Cable Protection

GRACE INERTIA CONNECTOR 6.2MM PITCH TAB

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

GRACE INERTIA CONNECTOR 6.2MM PITCH TAB

Technical Specifications

Parameters and characteristics for this part

Part	Accessory Type	For Use With/Related Products	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Contact Termination	Contact Finish	Color	Note	Connector Type	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Fastening Type
TE Connectivity Raychem Cable Protection 1-2232564-1	Terminal Position Assurance (TPA)	Grace Inertia Connectors
TE Connectivity Raychem Cable Protection 1746974-1			14 AWG	12 AWG	Tab	Crimp	Tin
TE Connectivity Raychem Cable Protection 1871867-1						Crimp		Natural	Contacts Not Included	Plug	Free Hanging (In-Line)	1	-30 ░C	105 ░C	6.2 mm	0.244 in	Polyamide (PA66) Nylon 6/6	Female Socket	Latch Lock
TE Connectivity Raychem Cable Protection 1747995-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tab Contact, Tin (Sn), 600 VAC, 600 VDC, Locking Lance Contact Retention, 14 – 12 AWG, 2.08 – 3.31 mm² Wire, Crimp, Copper Alloy, GRACE INERTIA 6.2
