SBRT25U50SLP-13

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	SBRT25U50SLP-13

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C

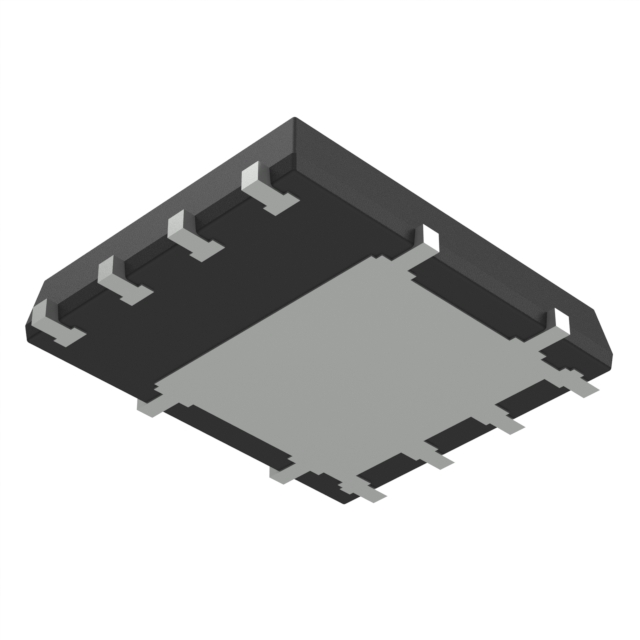

Package / Case	8-PowerTDFN
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	PowerDI5060-8
Technology	Super Barrier
Voltage - DC Reverse (Vr) (Max) [Max]	50 V
Voltage - Forward (Vf) (Max) @ If [Max]	520 mV

NRND = Not Recommended for New Design

Part	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Package / Case	Current - Reverse Leakage @ Vr	Speed	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Supplier Device Package
Diodes Inc SBRT25U50SLP-13	25 A	150 °C	-55 °C	Super Barrier	8-PowerTDFN	500 µA	Standard Recovery >500ns	200 mA	520 mV	50 V	Surface Mount	PowerDI5060-8
