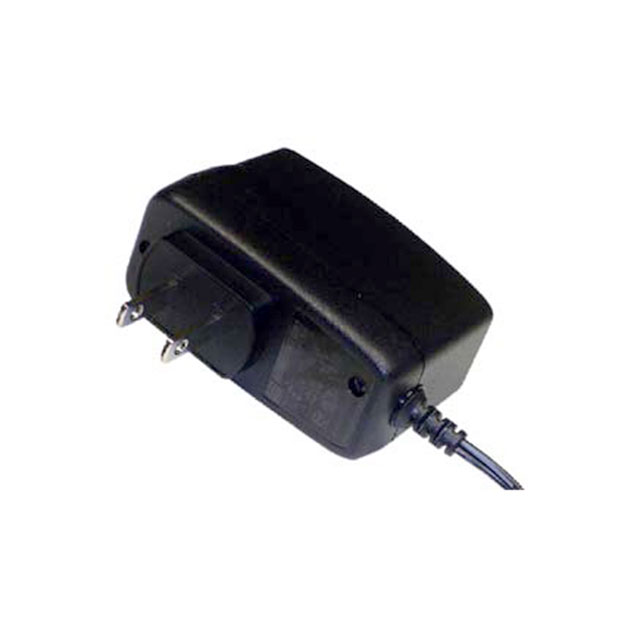

Specification	PSAA12A-120L6

Applications	ITE (Commercial)
Approval Agency	cULus
Cord Length	47.2 in
Current - Output (Max)	1 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	9.5 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension Height	1.81 in
Size / Dimension Length	2.8 in
Size / Dimension Width	1.34 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	12 V
Weight	0.187 lb

PSAA12A Series

Part	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Input Type	Approval Agency	Polarization	Input Connector	Operating Temperature (Max)	Output Connector O.D.	Output Connector	Output Connector Length	Output Connector I.D.	Form	Applications	Current - Output (Max)	Efficiency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	No Load Power Consumption (Max)	Voltage - Output	Cord Length	Region Utilized	Weight	Standard Number
Phihong USA PSAA12A-120L6-R	2.8 in	1.34 in	1.81 in	Fixed Blade	cULus	Positive Center	NEMA 1-15P	40 °C	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	Wall Mount (Class II)	ITE (Commercial)	1 A	CoC Tier 2 Level VI	90 V	264 V	12 W	75 mW	12 V	47.2 in	North America
Phihong USA PSAA12A-120L6	2.8 in	1.34 in	1.81 in	Fixed Blade	cULus	Positive Center	NEMA 1-15P	40 °C	5.5 mm	Barrel Plug	9.5 mm	2.1 mm	Wall Mount (Class II)	ITE (Commercial)	1 A	CoC Tier 2 Level VI	90 V	264 V	12 W	75 mW	12 V	47.2 in	North America	0.187 lb
Phihong USA PSAA12A-120L6-R-CR1	2.8 in	1.34 in	1.81 in	Fixed Blade	cULus PSE	Positive Center	NEMA 1-15P	40 °C	5.5 mm	Barrel Plug R/A	10 mm	2.1 mm	Wall Mount (Class II)	ITE (Commercial)	1 A	CoC Tier 2 Level VI	90 V	264 V	12 W	75 mW	12 V	47.2 in	North America	0.187 lb	55022 60950-1 62368-1
