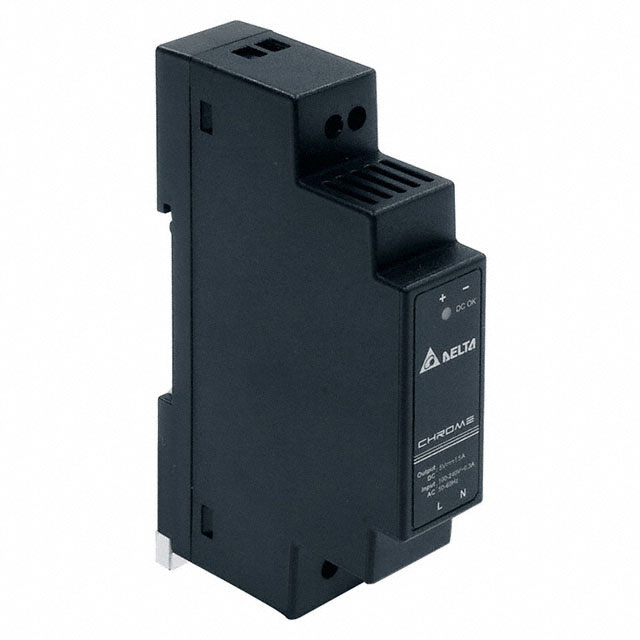

DRC-5V10W1AZ

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 5V 1.5A 7.5W 4-PIN CARTON

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 5V 1.5A 7.5W 4-PIN CARTON

Technical Specifications

Parameters and characteristics for this part

Specification	DRC-5V10W1AZ

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CB, cULus, CE
Current - Output (Max) [Max]	1.5 A
Efficiency	78 %
Features	Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	10 W
Size / Dimension [x]	3.58 in
Size / Dimension [x]	91 mm
Size / Dimension [y]	0.81 in
Size / Dimension [y]	18 mm
Size / Dimension [z]	2.19 "
Size / Dimension [z]	55.6 mm
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Applications	Approval Agency	Features	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Efficiency	Current - Output (Max) [Max]	Number of Outputs	Input Type	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)
Delta Electronics DRC-5V10W1AZ	ITE (Commercial)	CB CE cULus cURus TUV	Adjustable Output Universal Input	-25 °C	71 °C	90 VAC	264 VAC	3000 V	78 %	1.5 A	1	AC	5 V	2.19 "	0.81 in	55.6 mm	18 mm	3.58 in	91 mm	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC POWER SUPPLY SINGLE-OUT 5V 1.5A 7.5W 4-PIN CARTON
