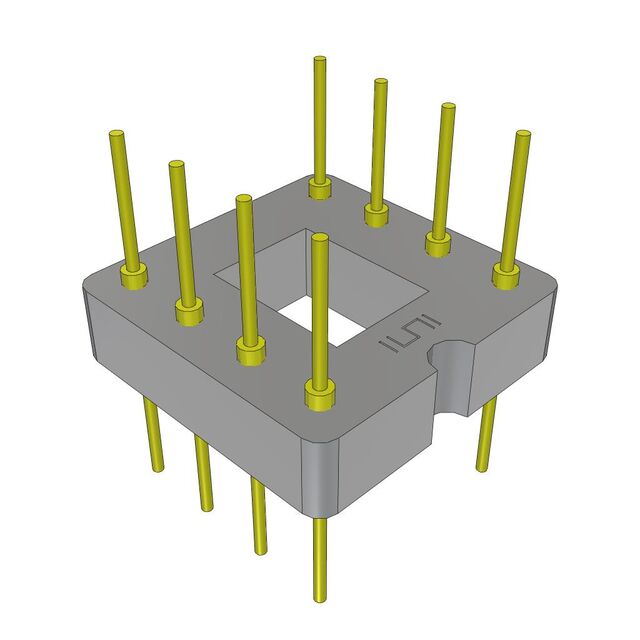

Specification	APA-308-G-A

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Gold
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness	20 µin
Contact Finish Thickness - Mating	20 Ąin
Contact Finish Thickness - Post	20 µin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Type	Male Pin
Features	Open Frame
Grid Columns	4
Grid Rows	2
Housing Material	Glass Filled, Polybutylene Terephthalate, PBT
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions or Pins (Grid)	8
Number of Rows	2
Pitch	0.1 in
Pitch - Mating	0.1 in
Pitch - Post	0.1 in
Row Spacing	0.1 in
Termination	Solder

APA-308 Series

Part	Color	Termination	Pitch	Contact Type	Contact Finish Thickness	Features	Contact Finish	Number of Rows	Row Spacing	Connector Type	Number of Positions	Mounting Type	Housing Material	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish - Post	Contact Material - Mating	Pitch - Post	Material Flammability Rating	Contact Finish Thickness - Post	Pitch - Mating	Contact Material - Post	Grid Columns	Grid Rows	Number of Positions or Pins (Grid)
Samtec Inc. APA-308-G-A1	Black	Solder	0.1 in	Male Pin	20 µin	Open Frame	Gold	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate	20 Ąin	Gold	Gold	Phosphor Bronze	0.1 in	UL94 V-0	20 µin	0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-T-N	Black	Solder	0.1 in	Male Pin		Open Frame	Tin	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate		Tin	Tin	Phosphor Bronze	0.1 in	UL94 V-0		0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-T-A	Black	Solder	0.1 in	Male Pin		Open Frame	Tin	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate		Tin	Tin	Phosphor Bronze	0.1 in	UL94 V-0		0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-G-A	Black	Solder	0.1 in	Male Pin	20 µin	Open Frame	Gold	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate	20 Ąin	Gold	Gold	Phosphor Bronze	0.1 in	UL94 V-0	20 µin	0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-T-A1	Black	Solder	0.1 in	Male Pin		Open Frame	Tin	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate		Tin	Tin	Phosphor Bronze	0.1 in	UL94 V-0		0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-G-M	Black	Solder	0.1 in	Male Pin	20 µin	Open Frame	Gold	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate	20 Ąin	Gold	Gold	Phosphor Bronze	0.1 in	UL94 V-0	20 µin	0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-T-P	Black	Solder	0.1 in	Male Pin		Open Frame	Tin	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate		Tin	Tin	Phosphor Bronze	0.1 in	UL94 V-0		0.1 in	Phosphor Bronze	4	2	8
Samtec Inc. APA-308-T-M	Black	Solder	0.1 in	Male Pin		Open Frame	Tin	2	0.1 in	DIL - Header DIP	8	Through Hole	Glass Filled PBT Polybutylene Terephthalate		Tin	Tin	Phosphor Bronze	0.1 in	UL94 V-0		0.1 in	Phosphor Bronze	4	2	8
