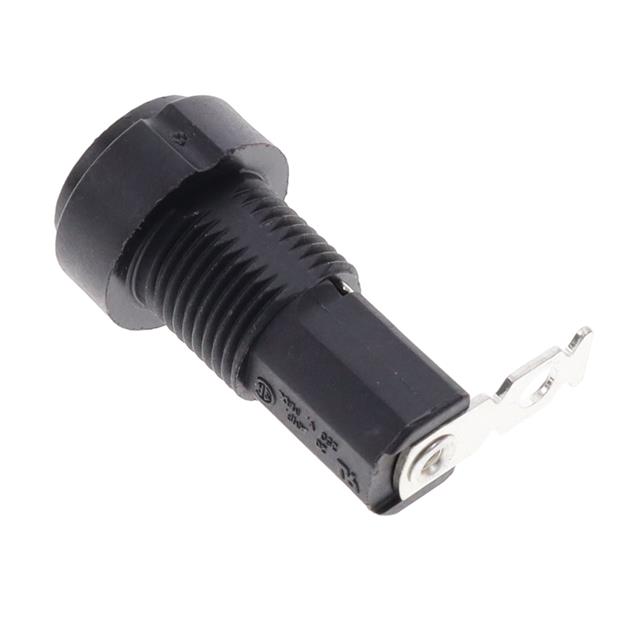

Specification	03420010HX010

Contact Finish	Tin
Contact Material	Copper Alloy
Current Rating	20 A
For Use With/Related Products	3AG, 3AB
Fuse Type	Cartridge
Fuseholder Type	Holder
Mounting Type	Panel Mount
Number of Circuits	1
Orientation	Horizontal, Vertical
Termination Style	Solder Lug

342 Series

ACS 3AG FUSEHLDR

Part	Mounting Type	Contact Finish	Contact Material	For Use With/Related Products	Current Rating	Fuse Length	Fuse Diameter	Quick Connect Size (0.187")	Termination Style	Voltage	Fuseholder Type	Fuse Type	Number of Circuits	Orientation
LITTELFUSE 03420028HXL	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in	0.187 in	Quick Connect	250 V	Holder	Cartridge	1
LITTELFUSE 03420010HX010	Panel Mount	Tin	Copper Alloy	3AB 3AG	20 A				Solder Lug		Holder	Cartridge	1	Horizontal Vertical
LITTELFUSE 03420022X	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in		Solder Lug	250 V	Holder	Cartridge	1
LITTELFUSE 03420028H	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in	0.187 in	Quick Connect	250 V	Holder	Cartridge	1
LITTELFUSE 03420012X	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in		Solder Lug	250 V	Holder	Cartridge	1
LITTELFUSE 03420022H	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in		Solder Lug	250 V	Holder	Cartridge	1
LITTELFUSE 03420058X	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in	0.187 in	Quick Connect	250 V	Holder	Cartridge	1
LITTELFUSE 03420028X	Panel Mount	Tin	Brass	1/4" x 1-1/4" (SFE-20) 3AG	20 A	1.26 in	0.25 in	0.187 in	Quick Connect	250 V	Holder	Cartridge	1
