Q-1Y02B0013018i

Active

Amphenol Custom Cable

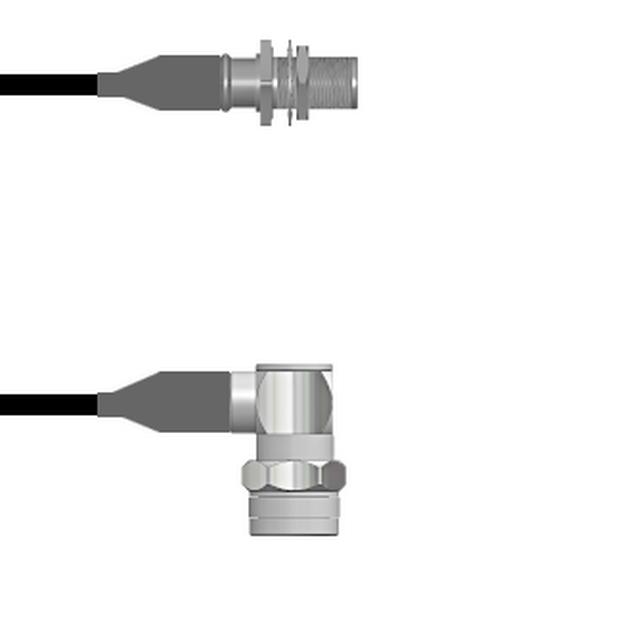

CBL ASSY NTYPE JACK TO PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Y02B0013018i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Y02B0013018i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1Y02B0 Series

Part	1st Connector Mounting Type	1st Connector Mounting Feature	Frequency - Max [Max]	Cable Type	Style	1st Connector	2nd Connector	Features	Color	Length	Length	Length	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1Y02B0013001M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013002M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	2 m	6.6 ft	78.7 in	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013.75M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	750 mm		29.53 "	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B00130.5M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	50 cm		19.69 "	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013018i	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black				Free Hanging (In-Line)	Female	50 Ohms	Male	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1Y02B00131.5M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	1.5 m	4.9 ft	59.1 in	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013072i	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	1.8 m	6 ft	72 in	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013009i	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	228.6 mm		9 "	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013003M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	Female	50 Ohms	Male
Amphenol Custom Cable Q-1Y02B0013.25M	Panel Mount	Bulkhead - Front Side Nut	6000 MHz	LMR 400	N-Type to N-Type	N-Type Jack	N-Type Plug Right Angle	Shielded	Black				Free Hanging (In-Line)	Female	50 Ohms	Male		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 228.91
		25	$ 224.62
		50	$ 220.33
		100	$ 216.04
		250	$ 211.75

Description

General part information

Q-1Y02B0 Series

Cable Assembly Coaxial N-Type to N-Type LMR 400 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
