4566-832-S-12
ActiveRAF Electronic Hardware
1/4 HEX X 3.00 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
4566-832-S-12
ActiveRAF Electronic Hardware
1/4 HEX X 3.00 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4566-832-S-12 |
|---|---|
| Between Board Height | 3 in |
| Between Board Height | 76.2 mm |
| Color | Clear |
| Diameter - Outside [diameter] | 6.35 mm |
| Diameter - Outside [diameter] | 0.25 in |
| Diameter - Outside [diameter] | 0.25 in |
| Gender | Female |
| Length - Overall [x] | 3 in |
| Length - Overall [x] | 76.2 mm |
| Plating | Zinc, Chromate |
| Screw, Thread Size | #8-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 131 | $ 2.83 | |
Description
General part information
4566-832 Series

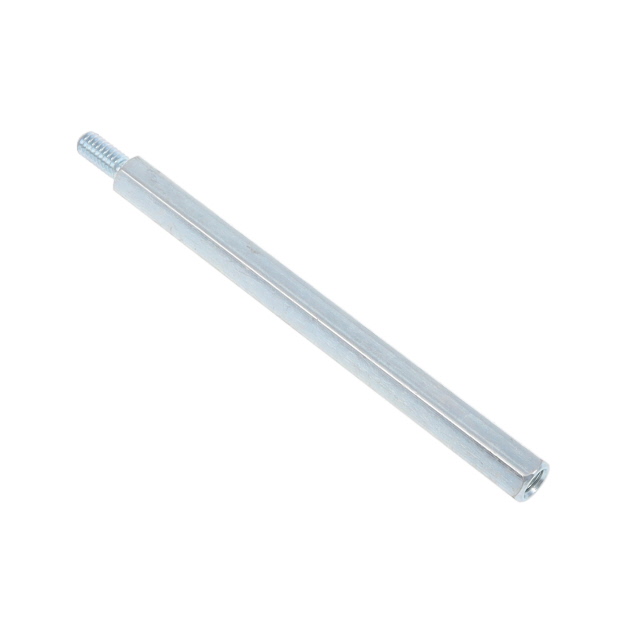

Hex Standoff Threaded #8-32 Steel 3.000" (76.20mm) Clear
Documents
Technical documentation and resources
No documents available
