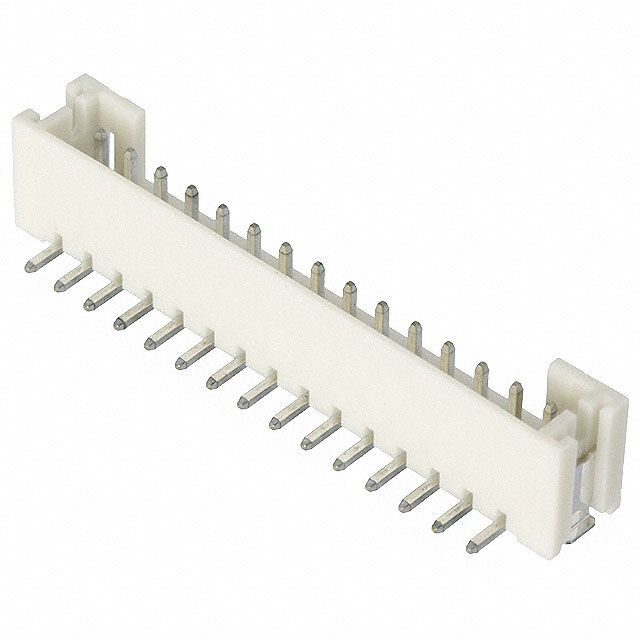

B15B-PH-SM4-TB

Active

CONN HEADER SMD 15POS 2MM

Active

CONN HEADER SMD 15POS 2MM

Description

General part information

Connector Header Surface Mount 15 position 0.079" (2.00mm)

Parameters and characteristics for this part

Specification	B15B-PH-SM4-TB

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.26 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Height	8.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	100 VAC

Part	Contact Finish - Post	Overall Contact Length	Number of Positions Loaded	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Mounting Type	Pitch - Mating	Contact Material	Insulation Material	Number of Positions	Style	Connector Type	Contact Length - Post	Contact Type	Contact Shape	Fastening Type	Material Flammability Rating	Contact Length - Mating	Insulation Height	Contact Finish - Mating	Current Rating	Insulation Color	Number of Rows	Voltage Rating	Mated Stacking Height	Features
JST Sales America Inc. B15B-PH-K-S	Tin	0.333 in	All	Press-Fit Solder	85 °C	-25 °C	Shrouded - 4 Wall	Through Hole	0.079 in	Brass	Nylon 6/6 Polyamide (PA66)	15	Board Cable/Wire	Header	0.134 in	Male Pin	Square	Detent Lock	UL94 V-0	0.13 in	0.236 in	Tin	2 A	Natural	1	100 VAC	8 mm
JST Sales America Inc. B15B-PH-SM4-TBT	Tin		All	Solder	85 °C	-25 °C	Shrouded - 4 Wall	Surface Mount	0.079 in	Copper Alloy	Nylon 6T Polyamide (PA6T)	15	Board Cable/Wire	Header		Male Pin	Square	Detent Lock	UL94 V-0	0.13 in	0.26 in	Tin	2 A	Natural	1	100 VAC	8.6 mm	Pick and Place Solder Retention
JST Sales America Inc. B15B-PH-SM4-TB	Tin		All	Solder	85 °C	-25 °C	Shrouded - 4 Wall	Surface Mount	0.079 in	Copper Alloy	Nylon 6T Polyamide (PA6T)	15	Board Cable/Wire	Header		Male Pin	Square	Detent Lock	UL94 V-0	0.13 in	0.26 in	Tin	2 A	Natural	1	100 VAC	8.6 mm	Solder Retention
JST Sales America Inc. B15B-PH-KL	Tin		All	Press-Fit Solder	85 °C	-25 °C	Shrouded - 4 Wall	Through Hole	0.079 in	Copper Alloy	Nylon 6/6 Polyamide (PA66)	15	Board Cable/Wire	Header	0.134 in	Male Pin	Square	Detent Lock	UL94 V-0		0.236 in	Tin	2 A	Gray	1	100 VAC
