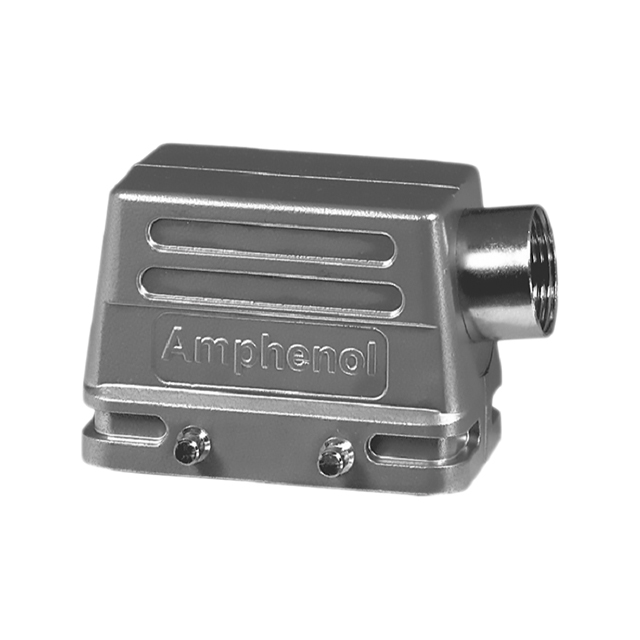

CONN HOOD SIDE ENTRY SZE10 M25

Deep-Dive with AI

Search across all available documentation for this part.

C146 10R010 500 1

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE10 M25

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10R010 500 1

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E10
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51 mm
Size / Dimension [z]	2.008 "
Style	Side Entry
Thread Size	M25

C146 10R010 Series

Part	Thread Size	Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Ingress Protection	Size	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features
Amphenol Tuchel Industrial C146 10R010 550 1	M20	Side Entry	Aluminum Alloy Die Cast	100 °C	-40 °C	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	Hood	IP65 - Dust Tight Water Resistant	E10	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C146 10R010 556 1	M20	Side Entry	Aluminum Alloy Die Cast	100 °C	-40 °C	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	Hood	IP65 - Dust Tight Water Resistant	E10	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10R010 500 4	M25	Side Entry	Aluminum Alloy Die Cast	100 °C	-40 °C	62.5 mm	29.5 mm			53 mm		Hood	IP65 - Dust Tight Water Resistant	A10	Locking Clip (1) on Base Bottom	2.461 "	2.087 in	1.161 "
Amphenol Tuchel Industrial C146 10R010 500 1	M25	Side Entry	Aluminum Alloy Die Cast	100 °C	-40 °C	2.874 in	1.693 in	73 mm	51 mm	2.008 "	43 mm	Hood	IP65 - Dust Tight Water Resistant	E10	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C146 10R010 550 4	M20	Side Entry	Aluminum Alloy Die Cast	100 °C	-40 °C	62.5 mm	29.5 mm			53 mm		Hood	IP65 - Dust Tight Water Resistant	A10	Locking Clip (1) on Base Bottom	2.461 "	2.087 in	1.161 "
Amphenol Tuchel Industrial C146 10R010 902 8	M25	Dual Top Entry	Aluminum Die Cast	100 °C	-40 °C	73 mm	43 mm			70 mm		Hood	IP65 - Dust Tight Water Resistant	E10	Locking Clip (2) on Base Bottom	2.874 in	2.756 in	1.693 in
Amphenol Tuchel Industrial C146 10R010 854 4	M20	Bottom Entry	Aluminum Alloy Die Cast	100 °C	-40 °C	62.5 mm	29.5 mm			47.5 mm		Hood - Coupling	IP65 - Dust Tight Water Resistant	A10	Locking Clip (1) on Hood Top	2.461 "	1.87 "	1.161 "	Cable to Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 19.38

Description

General part information

C146 10R010 Series

Hood Connector Side Entry M25 E10 IP65 - Dust Tight, Water Resistant
