6046-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.

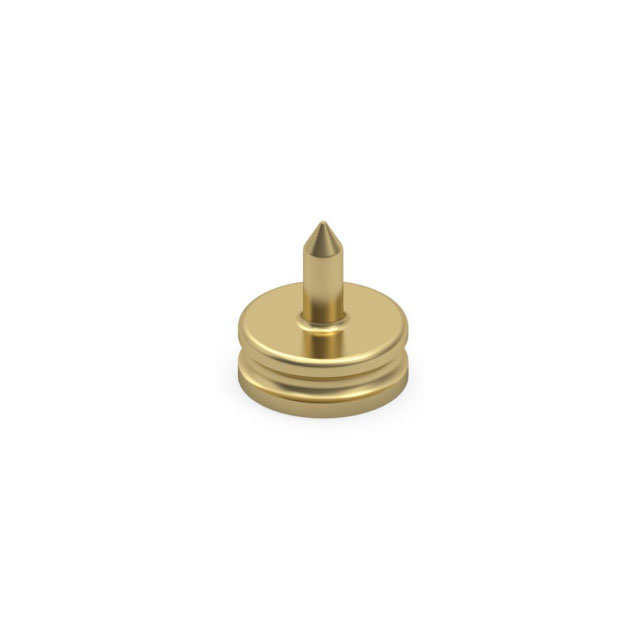

SURFACE MOUNT PIN, .081" LONG GR
Deep-Dive with AI
Search across all available documentation for this part.
6046-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
SURFACE MOUNT PIN, .081" LONG GR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6046-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.078 in |
| Flange Diameter [diameter] | 1.98 mm |
| Length - Above Flange [custom] | 1.3 mm |
| Length - Above Flange [custom] | 0.051 " |
| Length - Overall [x] | 2.06 mm |
| Length - Overall [x] | 0.081 " |
| Mounting Hole Diameter [diameter] | 0.58 mm |
| Mounting Hole Diameter [diameter] | 0.023 in |
| Mounting Type | Surface Mount |
| Pin Size - Above Flange [custom] | 0.48 mm |
| Pin Size - Above Flange [custom] | 0.019 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.50 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.26 | |||
| 3000 | $ 0.23 | |||
Description
General part information
6046-0 Series
PC Pin Terminal Connector Surface Mount Gold 0.019" (0.48mm)
