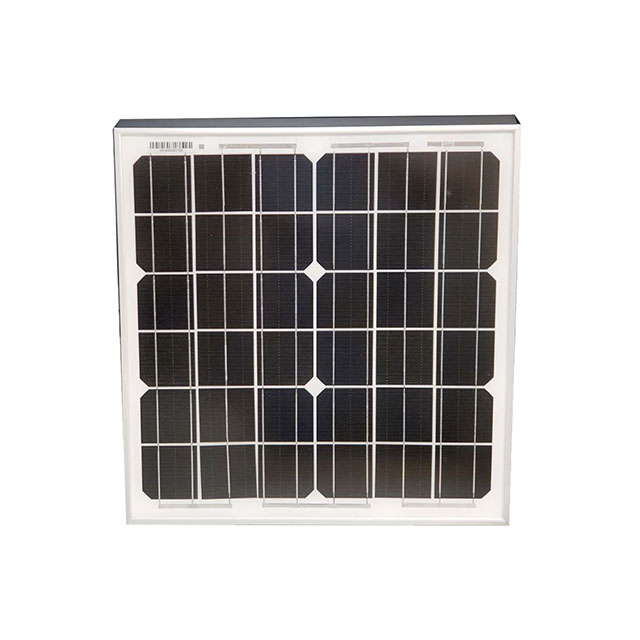

TPS-12-15W

Active

Tycon Systems Inc.

15W 12V SOLAR PANEL

Search across all available documentation for this part.

Active

Tycon Systems Inc.

15W 12V SOLAR PANEL

Technical Specifications

Parameters and characteristics commom to parts in this series

85W 12V SOLAR PANEL - 30.7 X 26.

Part	Package / Case	Current - Short Circuit (Isc)	Current @ Pmpp	Voltage @ Pmpp	Type	Voltage - Open Circuit	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts) - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Tycon Systems Inc. TPS-12-85W	Cell (36)	4.41 A	4.33 A	19.65 V	Monocrystalline	23.7 V	30.709 in	1.378 "	26.693 "	780 mm	35 mm	678 mm	85 W	85 °C	-40 °C
Tycon Systems Inc. TPS-12-15W	Cell (36)				Monocrystalline								15 W	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 15 W
