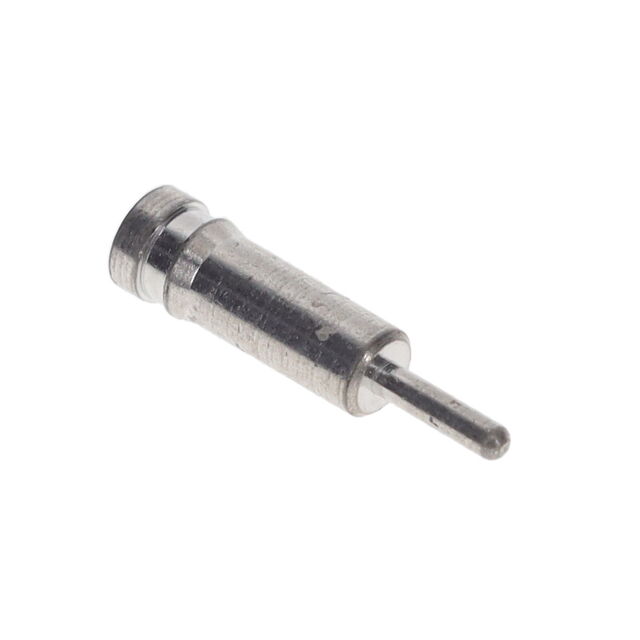

0405-0-15-01-34-01-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0405-0-15-01-34-01-04-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall	9.53 mm
Length - Overall [x]	0.375 "
Mounting Hole Diameter [diameter]	0.084 in
Mounting Hole Diameter [diameter]	2.13 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	5.59 mm
Socket Depth	0.22 in
Tail Diameter	0.03 in
Tail Diameter	0.76 mm
Tail Type	Standard Tail
Termination	Press-Fit

0405-0 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Diameter	Tail Diameter	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Contact Material	Tail Type	Contact Finish
Mill-Max Manufacturing Corp. 0405-0-15-80-34-80-04-0	200 Áin	5.08 Ám	0.375 "	9.53 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	1.63 mm	0.064 in	-55 °C	125 °C	Press-Fit	2.29 mm	0.09 in	0.084 in	2.13 mm	5.59 mm	0.22 in	Beryllium Copper	Standard Tail	Tin
Mill-Max Manufacturing Corp. 0405-0-15-01-34-01-04-0	200 Áin	5.08 Ám	0.375 "	9.53 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	1.63 mm	0.064 in	-55 °C	125 °C	Press-Fit	2.29 mm	0.09 in	0.084 in	2.13 mm	5.59 mm	0.22 in	Beryllium Copper	Standard Tail	Tin-Lead
Mill-Max Manufacturing Corp. 0405-0-15-80-34-14-04-0	10 Áin	0.25 Ám	0.375 "	9.53 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	1.63 mm	0.064 in	-55 °C	125 °C	Press-Fit	2.29 mm	0.09 in	0.084 in	2.13 mm	5.59 mm	0.22 in	Beryllium Copper	Standard Tail	Gold
Mill-Max Manufacturing Corp. 0405-0-15-15-34-51-04-0
Mill-Max Manufacturing Corp. 0405-0-15-15-34-14-04-0	10 Áin	0.25 Ám	0.375 "	9.53 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	0.03 in	0.76 mm	1.63 mm	0.064 in	-55 °C	125 °C	Press-Fit	2.29 mm	0.09 in	0.084 in	2.13 mm	5.59 mm	0.22 in	Beryllium Copper	Standard Tail	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.30
		10	$ 1.10
		100	$ 0.99
		1000	$ 0.72
		5000	$ 0.63
		10000	$ 0.60

Description

General part information

0405-0 Series

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit
