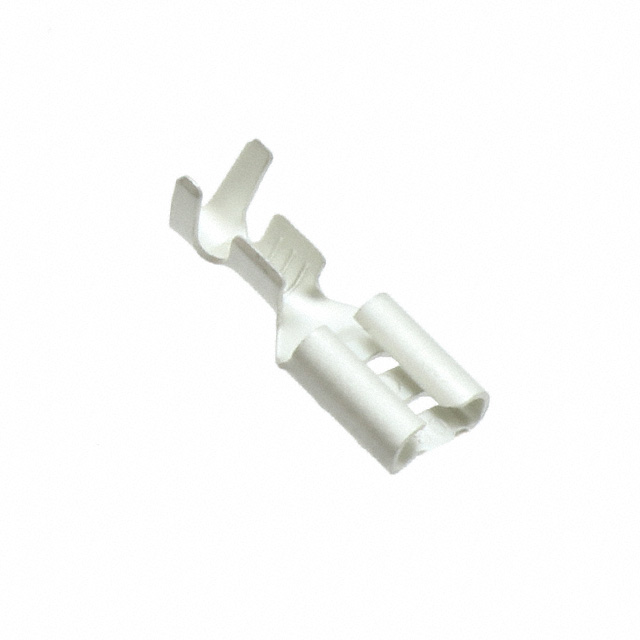

881623-2
ActiveTE Connectivity AMP Connectors
.187S FASTON REC.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
881623-2
ActiveTE Connectivity AMP Connectors
.187S FASTON REC.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 881623-2 | 881623 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Insulation Diameter [Max] | 3.3 mm | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in | 0.13 in |
| Insulation Diameter [Min] | 2 mm | 2 mm |
| Insulation Diameter [Min] | 0.079 in | 0.079 in |
| Length - Overall [x] | 15.1 mm | 15.1 mm |
| Length - Overall [x] | 0.594 in | 0.594 in |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Length | 0.252 in | 0.252 in |
| Tab Length | 6.4 mm | 6.4 mm |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 4.75 mm | 4.75 mm |
| Tab Width | 0.187 in | 0.187 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
881623 Series
.187S FASTON REC.
| Part | Contact Material | Contact Finish | Gender | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Type | Tab Length | Tab Length | Tab Thickness | Tab Thickness | Termination | Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 881623-2 | Brass | Tin | Female | 15.1 mm | 0.594 in | Standard | Free Hanging (In-Line) | 0.252 in | 6.4 mm | 0.032 in | 0.81 mm | Crimp | Non-Insulated | 2 mm | 3.3 mm | 0.13 in | 0.079 in | 17 AWG | 20 AWG | 4.75 mm | 0.187 in |
TE Connectivity AMP Connectors 881623-1 | Brass | Female | 15.1 mm | 0.594 in | Standard | Free Hanging (In-Line) | 0.252 in | 6.4 mm | 0.032 in | 0.81 mm | Crimp | Non-Insulated | 2 mm | 3.3 mm | 0.13 in | 0.079 in | 17 AWG | 20 AWG | 4.75 mm | 0.187 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.13 | |
| 10 | $ 0.11 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 15000 | $ 0.04 | ||
Description
General part information
881623 Series
0.187" (4.75mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
