881623-1

Active

TE Connectivity AMP Connectors

CONN QC RCPT 0.187 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 0.187 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

.187S FASTON REC.

Part	Contact Material	Contact Finish	Gender	Length - Overall [x]	Length - Overall [x]	Terminal Type	Mounting Type	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Termination	Insulation	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width	Tab Width
TE Connectivity AMP Connectors 881623-2	Brass	Tin	Female	15.1 mm	0.594 in	Standard	Free Hanging (In-Line)	0.252 in	6.4 mm	0.032 in	0.81 mm	Crimp	Non-Insulated	2 mm	3.3 mm	0.13 in	0.079 in	17 AWG	20 AWG	4.75 mm	0.187 in
TE Connectivity AMP Connectors 881623-1	Brass		Female	15.1 mm	0.594 in	Standard	Free Hanging (In-Line)	0.252 in	6.4 mm	0.032 in	0.81 mm	Crimp	Non-Insulated	2 mm	3.3 mm	0.13 in	0.079 in	17 AWG	20 AWG	4.75 mm	0.187 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

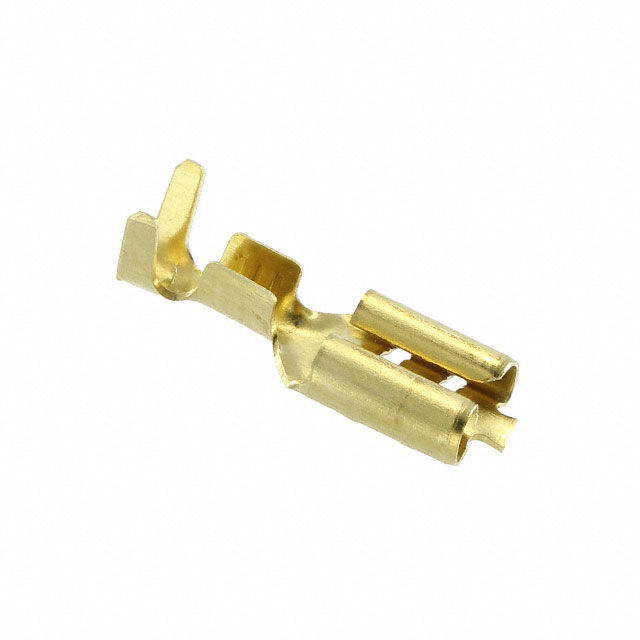

0.187" (4.75mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
