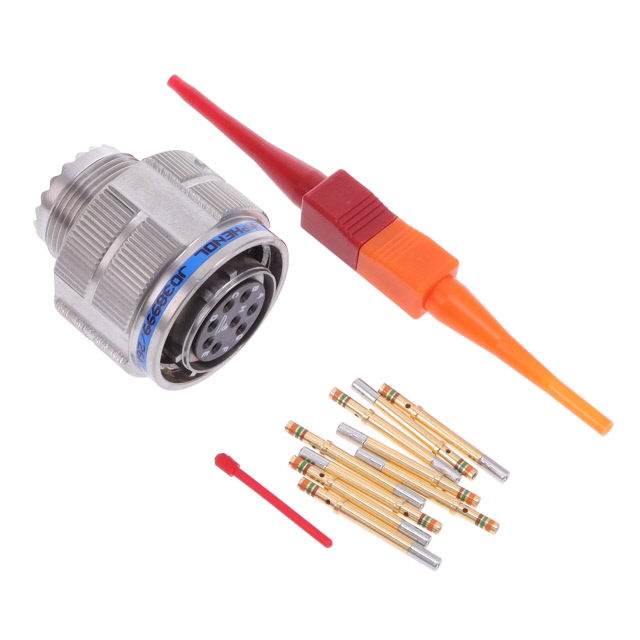

D38999/26KC8SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26KC8SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Features	Coupling Nut, Firewall Usage
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Material	Stainless Steel
Shell Size - Insert	13-8
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

Part	Orientation	Mounting Type	Grade	Contact Finish - Mating	Primary Material	Features	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Shielding	Contact Material	Ingress Protection	Termination	Shell Size, MIL	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Finish	Shell Material	Current Rating (Amps)	Color	Shell Size - Insert
Amphenol Aerospace Operations D38999/26KC35JN	N	Free Hanging (In-Line)	Military	Gold	Metal	Coupling Nut Firewall Usage Self Locking	Female Sockets Plug	2.54 çm	100 çin	Aviation Marine Military	-65 ░C	200 °C	MIL-DTL-38999 Series III	Shielded	Copper Alloy	Environment Resistant	Crimp	C	22 positions	35	13	Passivated	Stainless Steel
Amphenol Aerospace Operations D38999/26KC8SN	N	Free Hanging (In-Line)	Military	Gold	Metal	Coupling Nut Firewall Usage	Female Sockets Plug	1.27 µm	50 µin	Aerospace Aviation Marine Military	-65 ░C	200 °C	MIL-DTL-38999 Series III	Shielded	Copper Alloy	Environment Resistant	Crimp	C	8				Stainless Steel	7.5 A	Silver	13-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Crimp
