TL1240NQ1JBLK

Active

E-Switch

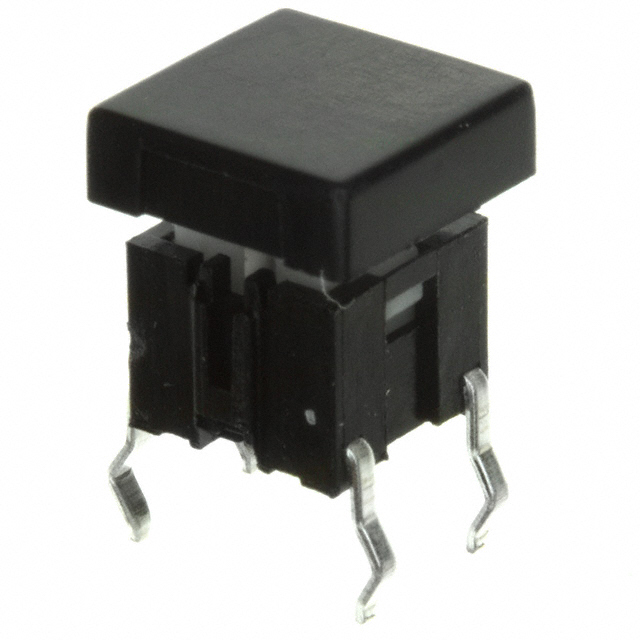

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1240NQ1JBLK

Actuator Height off PCB, Vertical	8.2 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TL1240 Series

Part	Circuit	Mechanical Life	Actuator Height off PCB, Vertical	Illumination Voltage (Nominal)	Mounting Type	Illumination Type, Color	Actuator Orientation	Outline [y]	Outline [x]	Illumination	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Travel	Switch Function	Actuator Material	Termination Style	Actuator Height off PCB, Vertical [z]
E-Switch TL1240REDQ2JRED	SPST-NO	100000 Cycles	8.2 mm	2.3 VDC	Through Hole	LED Red	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240RQ	SPST-NO	100000 Cycles		2.3 VDC	Through Hole	LED Red	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Plunger for Cap	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin	7.2 mm
E-Switch TL1240NF160Q	SPST-NO	100000 Cycles			Through Hole		Top Actuated	6 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	-20 C	70 °C	Plunger for Cap	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin	7.2 mm
E-Switch TL1240YQ2JRED	SPST-NO	100000 Cycles	8.2 mm	2.8 VDC	Through Hole	LED Yellow	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240NQ1JBLK	SPST-NO	100000 Cycles	8.2 mm		Through Hole		Top Actuated	6 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240GQ2JRED	SPST-NO	100000 Cycles	8.2 mm	2.8 VDC	Through Hole	Green LED	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240YQ1JCLR	SPST-NO	100000 Cycles	8.2 mm	2.8 VDC	Through Hole	LED Yellow	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240BQ1JCLR	SPST-NO	100000 Cycles	8.2 mm	4.2 VDC	Through Hole	Blue LED	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240BQ2JBLK	SPST-NO	100000 Cycles	8.2 mm	4.2 VDC	Through Hole	Blue LED	Top Actuated	6 mm	6 mm	Illuminated	0.05 A 12 VDC	-20 C	70 °C	Square Button	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin
E-Switch TL1240NQ	SPST-NO	100000 Cycles			Through Hole		Top Actuated	6 mm	6 mm	Non-Illuminated	0.05 A 12 VDC	-20 C	70 °C	Plunger for Cap	0.25 mm	Off-Mom	Polybutylene Terephthalate (PBT)	PC Pin	7.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.94
		10	$ 0.91
		800	$ 0.62
		1600	$ 0.58
		5600	$ 0.49
		10400	$ 0.45

Description

General part information

TL1240 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
