General part information

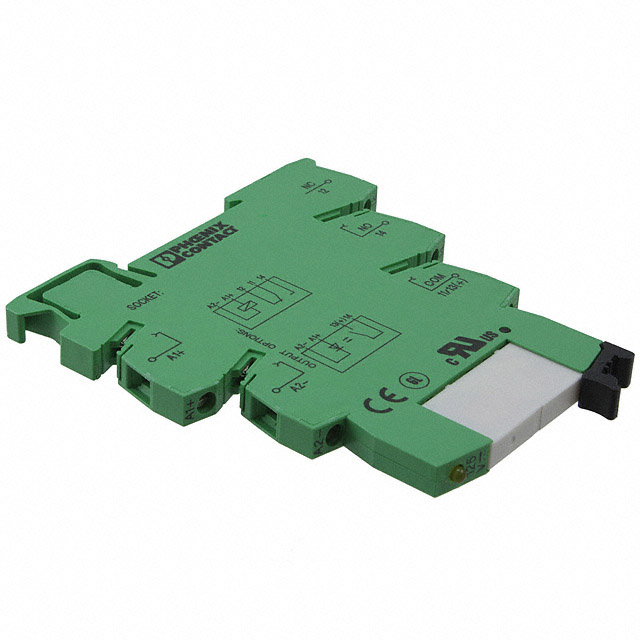

General Purpose Relay SPDT (1 Form C) 125VDC Coil DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2980021 | 29800 Series |
|---|---|---|
| Approval Agency | UKCA, CE | UKCA, CE, cULus, DNV, UL, EAC |
| Coil Current | 3 mA | 3 mA |
| Coil Resistance | 41.67 kOhms | 41.67 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 125 VDC | 125 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO), Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 6 A | 6 - 50 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Relay Type | General Purpose | General Purpose |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VAC |
| Termination Style | Screw Terminal | Screw Terminal |
RELAY GEN PURPOSE SPDT 6A 125V
| Part | Contact Rating (Current) | Features | Relay Type | Coil Resistance | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Coil Type | Coil Voltage | Mounting Type | Switching Voltage | Approval Agency | Contact Form | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2980021 | 6 A | Lighted Indicator, Socket Included | General Purpose | 41.67 kOhms | 3 mA | -25 °C | 60 °C | Screw Terminal | Non Latching | 125 VDC | DIN Rail | 250 VAC, 250 VDC | CE, UKCA | SPDT (1 Form C) | Silver Tin Oxide (AgSnO) |
Phoenix Contact 2980034 | 50 mA | Lighted Indicator, Socket Included | General Purpose | 3 mA | -25 °C | 60 °C | Screw Terminal | Non Latching | 125 VDC | DIN Rail | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | SPDT (1 Form C) | Gold (Au), Silver (Ag) |
