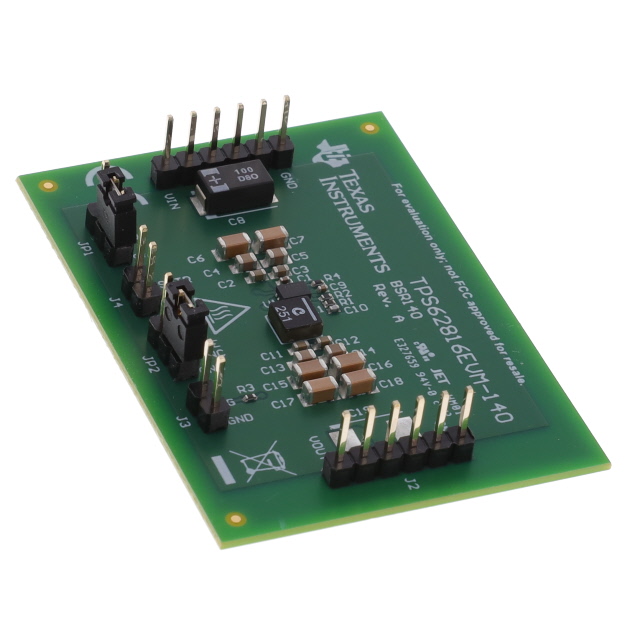

TPS62816EVM-140
ActiveTexas Instruments
EVAL BOARD FOR TPS62816-Q1
TPS62816EVM-140
ActiveTexas Instruments
EVAL BOARD FOR TPS62816-Q1
Description
General part information
TPS62816EVM-140
TPS62816-Q1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS62816EVM-140 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 6 A |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS62816-Q1 |
| Voltage - Input (Maximum) | 6 V |
| Voltage - Input (Minimum) | 2.7 V |
| Voltage - Output (Max) | 5.5 V |
| Voltage - Output (Min) | 0.6 V |
