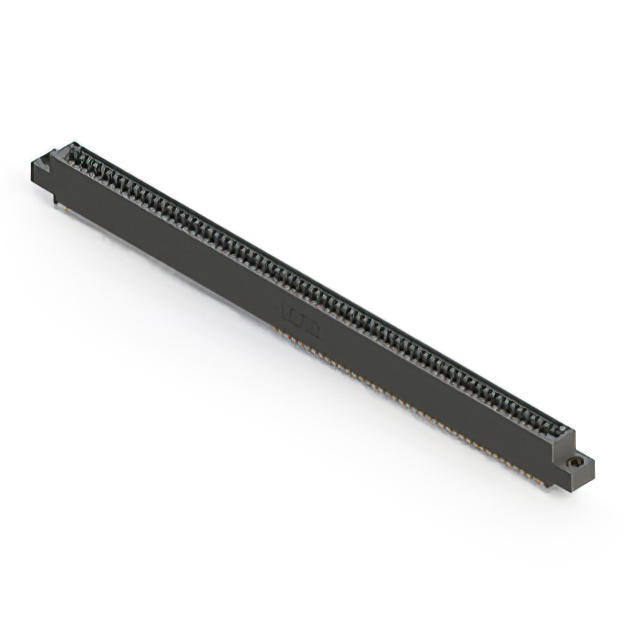

CONN EDGE SINGLE FML 72POS 0.100

Connectors, Interconnects

895-072-558-408

Active

EDAC Inc.

CONN EDGE SINGLE FML 72POS 0.100

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-072-558-408

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	4-40, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	PPS, Polyphenylene Sulfide
Mounting Type	Through Hole, Right Angle
Number of Positions	72
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

895-072 Series

...

Part	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Type	Pitch	Termination	Flange Feature Diameter	Flange Feature	Contact Finish	Number of Positions	Mounting Type	Number of Rows	Color	Contact Finish Thickness	Gender	Contact Material	Read Out	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Termination Rows
EDAC Inc. 895-072-542-503	0.054 in	0.07 in	Dual Edge Non Specified	Cantilever	0.1 in	Wire Wrap	0.116 in	Floating Bobbin Top Mount Opening	Gold	36 72	Through Hole	2	Black	10 Ąin	Female	Copper Alloy	Dual	125 °C	-40 °C	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 895-072-558-408	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	0.1 in	Solder		4-40 Threaded Insert Top Mount Opening	Gold	72	Right Angle Through Hole	1	Black	10 Ąin	Female	Copper Alloy	Single	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 895-072-544-212	0.054 in	0.07 in	Dual Edge Non Specified	Cantilever	0.1 in	Wire Wrap	0.128 in	Flush Mount Side Opening Unthreaded	Gold	36 72	Through Hole	2	Black	10 Ąin	Female	Copper Alloy	Dual	125 °C	-40 °C	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 895-072-521-603	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	0.1 in	Solder	0.116 in	Floating Bobbin Top Mount Opening	Gold	72	Through Hole	1	Black	10 Ąin	Female	Copper Alloy	Single	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 895-072-542-212	0.054 in	0.07 in	Dual Edge Non Specified	Cantilever	0.1 in	Wire Wrap	0.128 in	Flush Mount Side Opening Unthreaded	Gold	36 72	Through Hole	2	Black	10 Ąin	Female	Copper Alloy	Dual	125 °C	-40 °C	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 895-072-558-412	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	0.1 in	Solder	0.128 in	Side Mount Opening Unthreaded	Gold	72	Right Angle Through Hole	1	Black	10 Ąin	Female	Copper Alloy	Single	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 895-072-524-102	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	0.1 in	Solder	0.128 in	Flush Mount Top Opening Unthreaded	Gold	72	Through Hole	1	Black	10 Ąin	Female	Copper Alloy	Single	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 895-072-542-512	0.054 in	0.07 in	Dual Edge Non Specified	Cantilever	0.1 in	Wire Wrap	0.128 in	Side Mount Opening Unthreaded	Gold	36 72	Through Hole	2	Black	10 Ąin	Female	Copper Alloy	Dual	125 °C	-40 °C	Polyphenylene Sulfide PPS	2 rows
EDAC Inc. 895-072-521-612	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	0.1 in	Solder	0.128 in	Side Mount Opening Unthreaded	Gold	72	Through Hole	1	Black	10 Ąin	Female	Copper Alloy	Single	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
EDAC Inc. 895-072-559-102	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	0.1 in	Solder	0.128 in	Flush Mount Top Opening Unthreaded	Gold	72	Right Angle Through Hole	1	Black	10 Ąin	Female	Copper Alloy	Single	125 °C	-40 °C	Polyphenylene Sulfide PPS	1 rows
