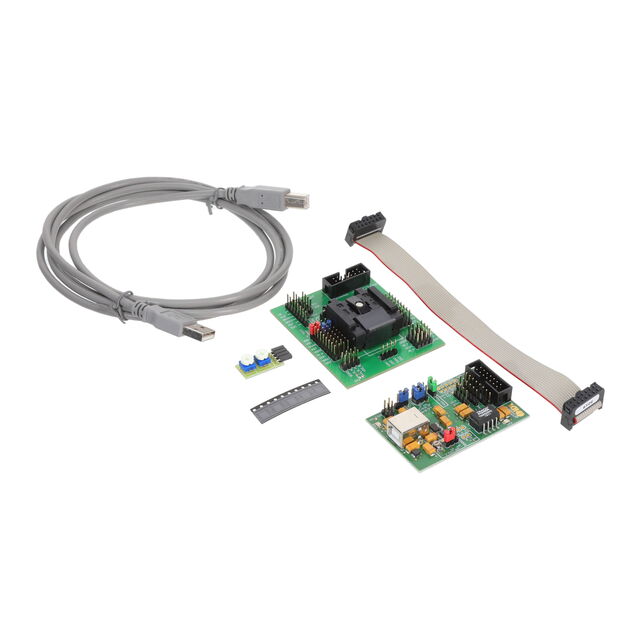

ZSSC3224KITV1P0

Active

Renesas Electronics Corporation

EVAL KIT, SENSOR SIGNAL CONDITIONER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

EVAL KIT, SENSOR SIGNAL CONDITIONER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZSSC3224KITV1P0	ZSSC3224 Series

	-	-
Applications	-	Sensor Signal Conditioner - Resistive
Contents	Board(s)	Board(s)
Function	Sensor Signal Conditioner	Sensor Signal Conditioner
Interface	-	Serial, I2C, SPI
Mounting Type	-	Surface Mount
Package / Case	-	24-VFQFN Exposed Pad
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	24-QFN (4x4)
Type	Interface	Interface
Utilized IC / Part	ZSSC3224	ZSSC3224
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.68 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 213.88
Newark	Each	1	$ 225.00

EVAL KIT, SENSOR SIGNAL CONDITIONER ROHS COMPLIANT: YES

Part	Supplied Contents	Function	Contents	Utilized IC / Part	Type	Applications	Supplier Device Package	Package / Case	Interface	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Renesas Electronics Corporation ZSSC3224KITV1P0	Board(s)	Sensor Signal Conditioner	Board(s)	ZSSC3224	Interface
Renesas Electronics Corporation ZSSC3224KITV1P0
Renesas Electronics Corporation ZSSC3224BI3R						Sensor Signal Conditioner - Resistive	24-QFN (4x4)	24-VFQFN Exposed Pad	I2C, Serial, SPI	Surface Mount	3.6 V	1.68 V

General part information

ZSSC3224 - Sensor Signal Conditioner Interface Evaluation Board

Technical documentation and resources
