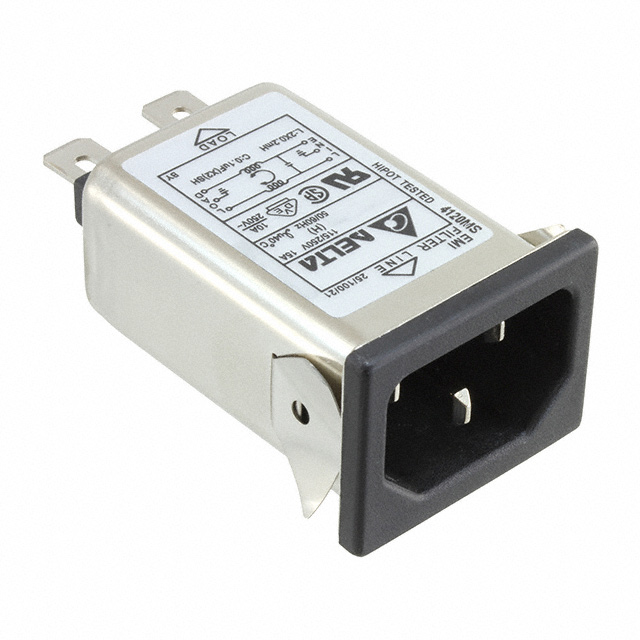

15GENG3EM(H)

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	15GENG3EM(H)	15GENG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A	15 A
Current Rating - Filter	15 A	15 A
Features	Mounting Clip	Bleed Resistor, Mounting Clip
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.5 mm	29.5 mm
Panel Cutout Dimensions [y]	21.5 mm	21.5 mm
Panel Thickness [Max]	0.063 in	0.063 in
Panel Thickness [Max]	1.6 mm	1.6 mm
Panel Thickness [Min]	0.81 mm	0.81 mm
Panel Thickness [Min]	0.032 in	0.032 in
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Termination	Connector Style	Connector Type	Current Rating - Filter	Features	Filter Type	Mounting Type	Current Rating - Appliance Inlet	Approval Agency	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Delta Electronics 15GENG3EM-R	Quick Connect	IEC 320-C14	Male Blades, Receptacle	15 A	Bleed Resistor	Filtered (EMI, RFI) - Commercial, Medical	Panel Mount, Snap-In	15 A	CSA, UL, VDE	115 VAC	250 VAC	0.81 mm	0.032 in	0.063 in	1.6 mm
Delta Electronics 15GENG3EM(H)	Quick Connect	IEC 320-C14	Male Blades, Receptacle	15 A	Mounting Clip	Filtered (EMI, RFI) - Commercial, Medical	Panel Mount, Snap-In	15 A	CSA, UL, VDE	115 VAC	250 VAC	0.81 mm	0.032 in	0.063 in	1.6 mm		29.5 mm	21.5 mm
