8380-2SG-311

Active

Conxall/Switchcraft

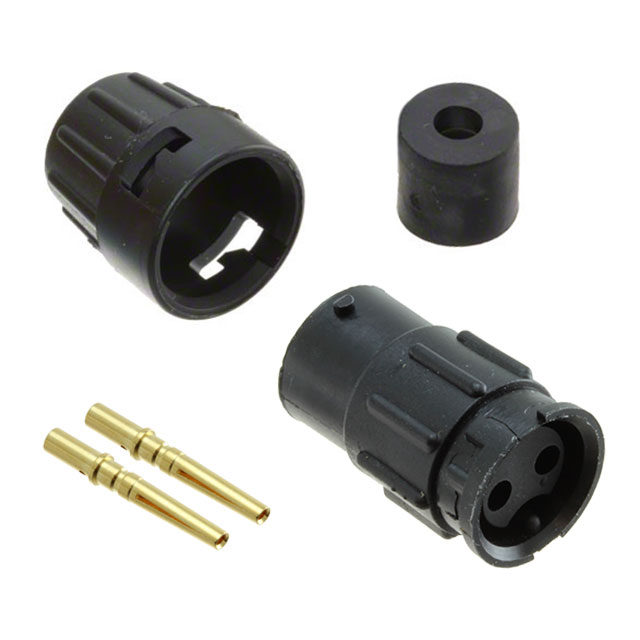

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8380-2SG-311

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58
		10	$ 5.59
		25	$ 5.24
		50	$ 4.99
		100	$ 4.76
		300	$ 4.40
		500	$ 4.24
		1000	$ 4.04
		2500	$ 3.79

Description

General part information

8380-2SG Series

2 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8380-2SG-311	8380-2SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.21 - 0.23 in
Cable Opening	-	0.19 - 0.21 in
Cable Opening	-	4.83 - 5.33 mm
Cable Opening	-	5.33 mm
Cable Opening	-	5.84 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8380-2SG Series

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Orientation	Number of Positions	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Contact Material	Voltage Rating	Termination	Current Rating (Amps)	Contact Finish - Mating	Fastening Type	Applications	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Primary Material	Shielding	Connector Type	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 8380-2SG-311	Keyed	2	Backshell	-40 °C	115 °C	Weathertight	Black	Brass	600 V	Crimp	Varies by Wire Gauge	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation	2.29 mm	0.09 in, 0.14 in	3.56 mm	Nylon, Polyamide (PA)	Plastic	Unshielded	Receptacle, Female Sockets	Free Hanging (In-Line)
Conxall/Switchcraft 8380-2SG-519	Keyed	2	Backshell	-40 °C	115 °C	Weathertight	Black	Brass	600 V	Crimp	Varies by Wire Gauge	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation				Nylon, Polyamide (PA)	Plastic	Unshielded	Receptacle, Female Sockets	Free Hanging (In-Line)	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 8380-2SG-321	Keyed	2	Backshell	-40 °C	115 °C	Weathertight	Black	Brass	600 V	Crimp	Varies by Wire Gauge	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation				Nylon, Polyamide (PA)	Plastic	Unshielded	Receptacle, Female Sockets	Free Hanging (In-Line)	0.23 in	0.21 in	5.33 mm		5.84 mm
Conxall/Switchcraft 8380-2SG-315	Keyed	2	Backshell	-40 °C	115 °C	Weathertight	Black	Brass	600 V	Crimp	Varies by Wire Gauge	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation				Nylon, Polyamide (PA)	Plastic	Unshielded	Receptacle, Female Sockets	Free Hanging (In-Line)						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 8380-2SG-3DC	Keyed	2	Backshell	-40 °C	115 °C	Weathertight	Black	Brass	600 V	Crimp	Varies by Wire Gauge	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation				Nylon, Polyamide (PA)	Plastic	Unshielded	Receptacle, Female Sockets	Free Hanging (In-Line)
