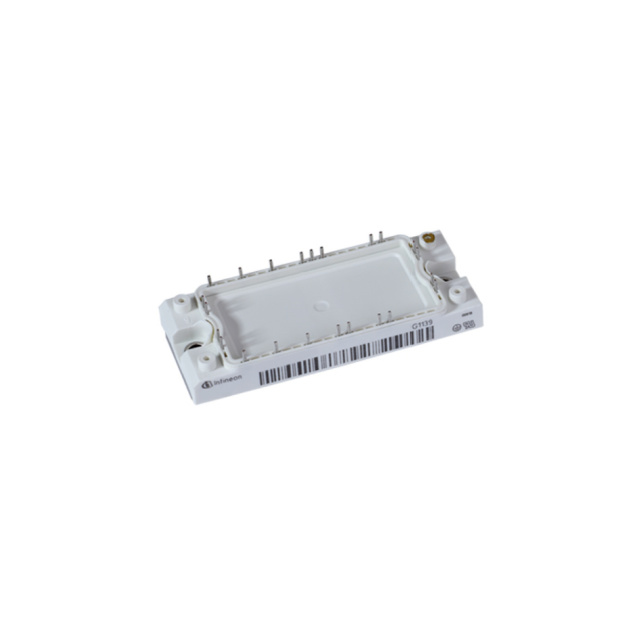

F450R12KS4BOSA1

Unknown

Infineon Technologies

IGBT MOD 1200V 70A 355W

Search across all available documentation for this part.

Unknown

Infineon Technologies

IGBT MOD 1200V 70A 355W

Technical Specifications

Parameters and characteristics for this part

Specification	F450R12KS4BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	70 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	3.4 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	355 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	3.75 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Power - Max [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	NTC Thermistor	Mounting Type	Input	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]
Infineon Technologies F450R12KS4B11BOSA1	125 °C	-40 °C	Module	1200 V	Three Phase Inverter	355 W	Module	1 mA		Chassis Mount	Standard	3.75 V	3.4 nF	70 A
Infineon Technologies F450R12KS4BOSA1	125 °C	-40 °C	Module	1200 V	Three Phase Inverter	355 W	Module	5 mA		Chassis Mount	Standard	3.75 V	3.4 nF	70 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Three Phase Inverter 1200 V 70 A 355 W Chassis Mount Module
