H7PXH-1510G

Active

Assmann WSW Components

CBL D-SUB- HHMM15H/AE15G/X

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL D-SUB- HHMM15H/AE15G/X

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL D-SUB- HHMM15H/AE15G/X

Part	Number of Positions	2nd Connector	Length	Length	1st Connector	Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Contact Finish	Color
Assmann WSW Components H7PXH-1506G	15	Individual Wire Leads	6 ft	1.83 m	Plug, Male Pins	DB15	10 Áin	0.25 Ám	Unshielded	Gold
Assmann WSW Components H7PXH-1510G	15	Individual Wire Leads	10 ft	3.05 m	Plug, Male Pins	DB15	10 Áin	0.25 Ám	Unshielded	Gold
Assmann WSW Components H7PXH-1506M	15	Individual Wire Leads	6 ft	1.83 m	Plug, Male Pins	DB15	10 Áin	0.25 Ám	Unshielded	Gold	Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

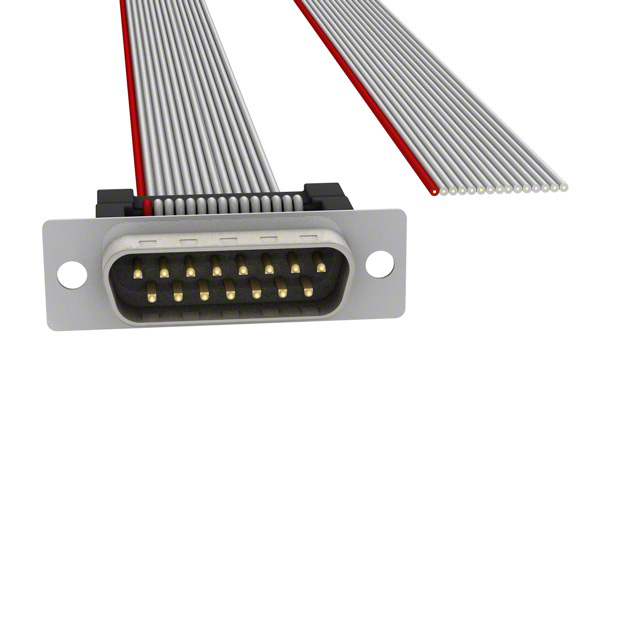

D-Sub Cable Assembly DB15 Gray, Ribbon 10.00' (3.05m) Plug, Male Pins to Individual Wire Leads Unshielded
