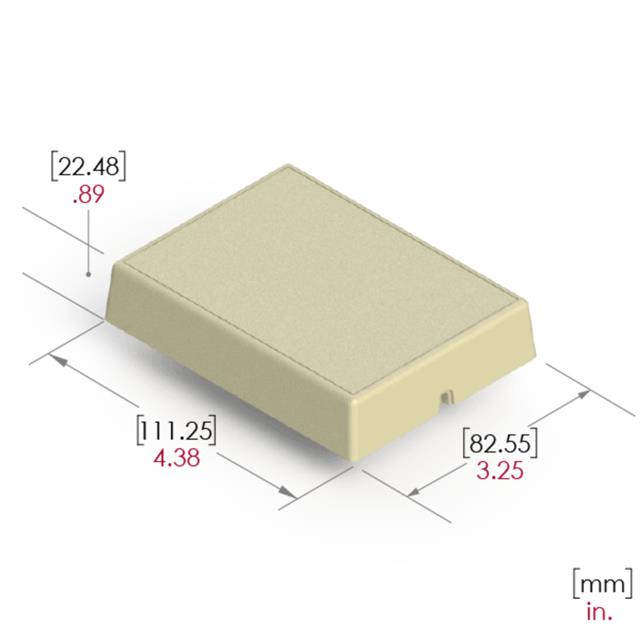

Specification	G10,AL

Area (L x W)	14.2 in²
Color	Almond
Container Type	Box, Potting
Design	Open End(s)
Features	PCB Supports
Height	0.89 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension Length	4.38 in
Size / Dimension Width	3.25 in
Thickness	0.09 in
Weight	0.11 lb

G10 Series

Part	Weight	Area (L x W)	Size / Dimension Width	Size / Dimension Length	Thickness	Material Flammability Rating	Color	Container Type	Ratings	Design	Height	Material	Features
Serpac G10,AL	0.11 lb	14.2 in²	3.25 in	4.38 in	0.09 in	UL94 HB	Almond	Box Potting	IP40	Open End(s)	0.89 in	ABS Plastic	PCB Supports
Serpac G10,WH	0.11 lb	14.2 in²	3.25 in	4.38 in	0.09 in	UL94 HB	White	Box Potting	IP40	Open End(s)	0.89 in	ABS Plastic	PCB Supports
Serpac G10,BK	0.11 lb	14.2 in²	3.25 in	4.38 in	0.09 in	UL94 HB	Black	Box Potting	IP40	Open End(s)	0.89 in	ABS Plastic	PCB Supports

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
