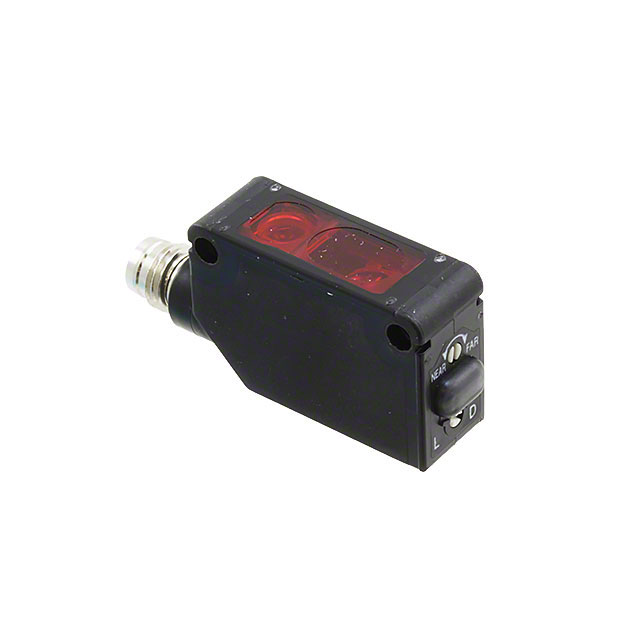

CX-443-P-Z

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE 50MM PNP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE 50MM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance [Max]	Sensing Distance [Min]	Connection Method	Sensing Method	Response Time	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Light Source	Sensing Distance [Max]	Sensing Distance [Min]
Panasonic Industrial Automation Sales CX-442	20 mm 300 mm	11.811 in	0.787 "	Cable	Reflective	1 ms	78.74 in	2 m	12 V	24 V	NPN - Open Collector	55 °C	-25 °C	IP67	Red LED
Panasonic Industrial Automation Sales CX-443-Z		1.969 "	0.079 "	4POS Connector M8	Reflective	1 ms			12 V	24 V	NPN - Open Collector	55 °C	-25 °C	IP67	Red LED	50 mm	2 mm
Panasonic Industrial Automation Sales CX-443-P-Z		1.969 "	0.079 "	4POS Connector M8	Reflective	1 ms			12 V	24 V	PNP - Open Collector	55 °C	-25 °C	IP67	Red LED	50 mm	2 mm
Panasonic Industrial Automation Sales CX-443-P		1.969 "	0.079 "	Cable	Reflective	1 ms	78.74 in	2 m	12 V	24 V	PNP - Open Collector	55 °C	-25 °C	IP67	Red LED	50 mm	2 mm
Panasonic Industrial Automation Sales CX-444		3.937 "	0.591 "	Cable	Reflective	1 ms	78.74 in	2 m	12 V	24 V	NPN - Open Collector	55 °C	-25 °C	IP67	Red LED	100 mm	1.5 cm
Panasonic Industrial Automation Sales CX-443		1.969 "	0.079 "	Cable	Reflective	1 ms	78.74 in	2 m	12 V	24 V	NPN - Open Collector	55 °C	-25 °C	IP67	Red LED	50 mm	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Reflective Optical Sensor 0.079" ~ 1.969" (2mm ~ 50mm) PNP - Open Collector
