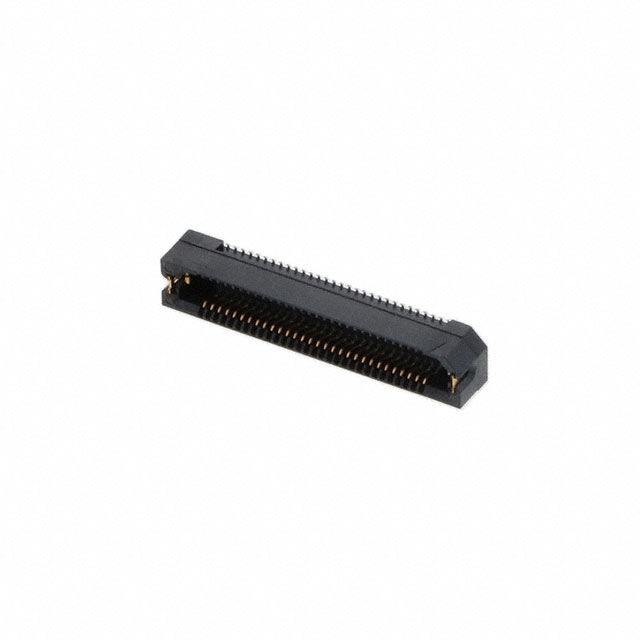

ERF8-030-05.0-L-DV-L-TR

Active

Samtec Inc.

CONN SOCKET 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 01 Datasheet +1

ERF8-030-05.0-L-DV-L-TR

Active

Samtec Inc.

CONN SOCKET 60POS SMD GOLD

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-030-05.0-L-DV-L-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Latches, Board Guide
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mated Stacking Heights	14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-030 Series

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Features	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
Samtec Inc. ERF8-030-01-L-D-EM2-EGPS-TR	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-030-07.0-L-DV-EGPS-K-TR	Surface Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place Shielded	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-030-05.0-L-DV-L-TR	Surface Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide Latches	7 mm 10 mm 13 mm 14 mm 20 mm			0.21 in	5.33 mm
Samtec Inc. ERF8-030-05.0-L-DV-K-TR	Surface Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm			0.21 in	5.33 mm
Samtec Inc. ERF8-030-07.0-S-DV-EGP-TR	Surface Mount	30 Áin	0.76 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-030-07.0-L-DV-EGPS-TR	Surface Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide Shielded	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
Samtec Inc. ERF8-030-01-L-D-EM4-TR	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-030-01-L-D-RA-EGP-TR	Surface Mount Right Angle	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide Mounting Flange				0.246 in	6.25 mm
Samtec Inc. ERF8-030-03-L-D-RA-TR	Surface Mount Right Angle	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide Mounting Flange				0.246 in	6.25 mm
Samtec Inc. ERF8-030-07.0-L-DV-TR	Surface Mount	10 Áin	0.25 Ám	2	60	0.8 mm	0.031 in	Gold	Outer Shroud Contacts Socket	Board Guide	9 mm 12 mm 15 mm 16 mm 22 mm	0.285 in	7.24 mm
