MIC5335-OFYMT-TR

Active

Microchip Technology

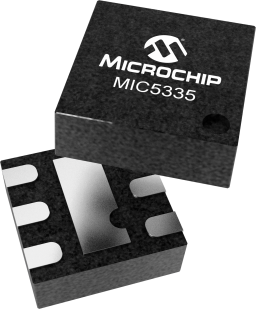

DUAL 300MA LDO DUAL EN 6 UDFN 1.6X1.6X0.6MM T/R ROHS COMPLIANT: YES

MIC5335-OFYMT-TR

Active

Microchip Technology

DUAL 300MA LDO DUAL EN 6 UDFN 1.6X1.6X0.6MM T/R ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

MIC5335 Series

The MIC5335 is a high current density, dual Ultra Low Dropout (ULDO) linear regulator. The MIC5335 is ideally suited for portable electronics which demand overall high performance in a very small form factor. The MIC5335 delivers exceptional thermal performances for those applications that demand higher power dissipation requirements in a very small footprint. In addition, the MIC5335 integrates two high performance 300mA LDOs with independent enable functions and offers high PSRR eliminating the need for a bypass capacitor.

The MIC5335 is a µCap design which enables operation with very small output capacitors for stability, thereby reducing required board space and component cost.

The MIC5335 is available in fixed output voltages. Additional voltages are available. For more information, contact Microchip sales office.

Technical Specifications

Parameters and characteristics for this part

Specification	MIC5335-OFYMT-TR

Control Features	Enable
Current - Output	300 mA
Current - Quiescent (Iq)	125 µA
Current - Supply (Max)	220 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Fixed
Package / Case	6-UFDFN Exposed Pad, 6-TMLF®
Package Length	1.6 mm
Package Name	6-TMLF®
Package Width	1.6 mm
Protection Features	Over Current, Over Temperature
PSRR (Maximum)	65 dB
PSRR (Minimum)	45 dB
Voltage - Input (Max)	5.5 V
Voltage - Output (Fixed)	2.9 V
Voltage - Output (Min)	1.5 V
Voltage Dropout (Max)	0.2 V

MIC5335 Series

Dual, High Performance 300mA uCap ULDO

Part	Current - Output	Protection Features	Voltage Dropout (Max)	Voltage - Output (Min)	Voltage - Output (Fixed)	Package Length	Package Name	Package Width	Output Type	PSRR (Minimum)	PSRR (Maximum)	Mounting Type	Package / Case	Current - Quiescent (Iq)	Current - Supply (Max)	Voltage - Input (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Control Features	Output Configuration	Number of Regulators
Microchip Technology MIC5335-SNYMT-TR	300 mA	Over Current Over Temperature	0.2 V	2.85 V	3.3 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-KGYMT-TR	300 mA	Over Current Over Temperature	0.2 V	1.8 V	2.6 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-NNYMT-TR	300 mA	Over Current Over Temperature	0.2 V	2.85 V	2.85 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-SLYMT-TR	300 mA	Over Current Over Temperature	0.2 V	2.7 V	3.3 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-OFYMT-TR	300 mA	Over Current Over Temperature	0.2 V	1.5 V	2.9 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-GGYMT-TR	300 mA	Over Current Over Temperature	0.2 V	1.8 V	1.8 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-MGYMT-TR	300 mA	Over Current Over Temperature	0.2 V	1.8 V	2.8 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-GWYMT-TR	300 mA	Over Current Over Temperature	0.2 V	1.6 V	1.8 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-MKYMT-TR	300 mA	Over Current Over Temperature	0.2 V	1.8 V	2.8 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
Microchip Technology MIC5335-SMYMT-TR	300 mA	Over Current Over Temperature	0.2 V	2.8 V	3.3 V	1.6 mm	6-TMLF®	1.6 mm	Fixed	45 dB	65 dB	Surface Mount	6-TMLF® 6-UFDFN Exposed Pad	125 µA	220 µA	5.5 V	125 °C	-40 °C	Enable	Positive	2
