15DYS850-240210W-K

Active

IDEAL POWER

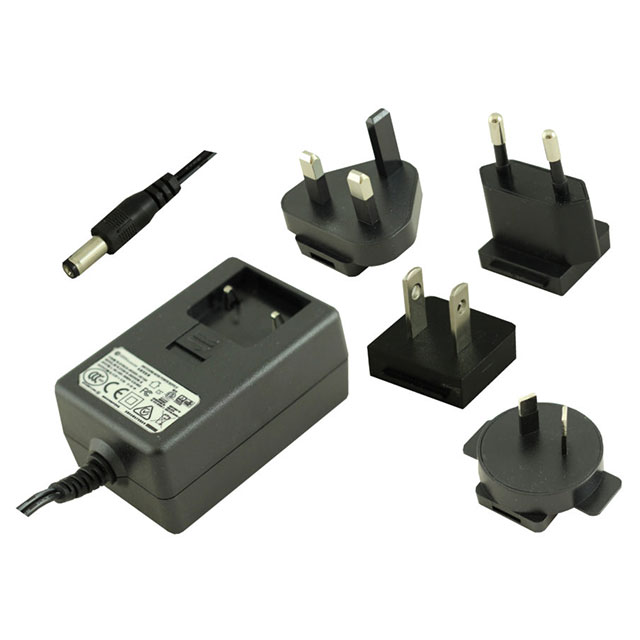

ADAPTER, AC-DC, 1 O/P, 24V, 2.1A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEAL POWER

ADAPTER, AC-DC, 1 O/P, 24V, 2.1A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

ADAPTER, AC-DC, 1 O/P, 24V, 2.1A ROHS COMPLIANT: YES

Part	Standard Number	Approval Agency	Power (Watts)	Current - Output (Max) [Max]	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Input Type	Polarization	Voltage - Output	Form	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [z]	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length
IDEAL POWER 15DYS850-240210W-K	60950-1	CB, CCC, CE, FCC, GS, RCM, TUV	50 W	2.1 A	Multi-Blade (Included)	90 VAC	264 VAC	210 mW	40 °C	0 °C	88 %	Multi-Blade (Included)	Positive Center	24 V	Wall Mount (Class II)	International	Barrel Plug	2.1 mm, 5.5 mm	12 mm	ITE (Commercial)	52 mm	1.38 in	2.05 in	84.5 mm	35 mm	3.33 "	1.2 m	47.2 in
IDEAL POWER 15DYS850-150336W-K	60950-1	CE, GS, SAA, UL	50 W	3.36 A	Multi-Blade (Included)	90 VAC	264 VAC	210 mW	40 °C	0 °C	88 %	Multi-Blade (Included)	Positive Center	15 VDC	Wall Mount (Class II)	International	Barrel Plug	2.1 mm, 5.5 mm	12 mm	ITE (Commercial)	52 mm	1.38 in	2.05 in	84.5 mm	35 mm	3.33 "	1.2 m	47.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 50 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
