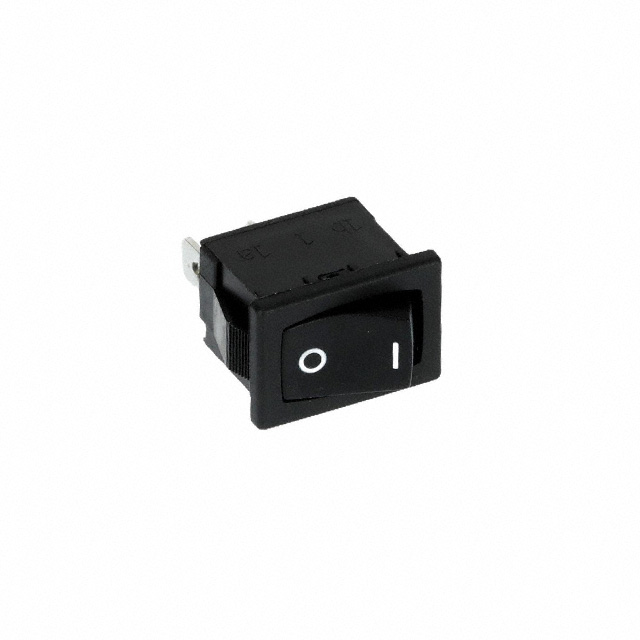

R1966FBLKBLKGF

Active

E-Switch

SWITCH ROCKER SPST-NO 15A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST-NO 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Mounting Type	Circuit	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Mechanical Life	Actuator Marking	Electrical Life
E-Switch R1966FBLKBLKGF	Off-Mom	Panel Mount Snap-In	SPST-NO	Black	125 V	Concave (Curved)	65 °C	-30 ░C	15 A	Quick Connect - 0.187" (4.7mm)	30000 Steps	O I	10000 Cycles
E-Switch R1966FBLKREDAF	Off-Mom	Panel Mount Snap-In	SPST-NO	Red	125 V	Concave (Curved)	65 °C	-30 ░C	15 A	Quick Connect - 0.187" (4.7mm)	30000 Steps	Dot	10000 Cycles
E-Switch R1966FBLKBLKIF	Off-Mom	Panel Mount Snap-In	SPST-NO	Black	125 V	Concave (Curved)	65 °C	-30 ░C	15 A	Quick Connect - 0.187" (4.7mm)	30000 Steps	ON OFF Vertical	10000 Cycles
E-Switch R1966FBLKBLKEF	Off-Mom	Panel Mount Snap-In	SPST-NO	Black	125 V	Concave (Curved)	65 °C	-30 ░C	15 A	Quick Connect - 0.187" (4.7mm)	30000 Steps	No Marking	10000 Cycles
E-Switch R1966FBLKBLKFF	Off-Mom	Panel Mount Snap-In	SPST-NO	Black	125 V	Concave (Curved)	65 °C	-30 ░C	15 A	Quick Connect - 0.187" (4.7mm)	30000 Steps	O -	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST-NO 15A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
