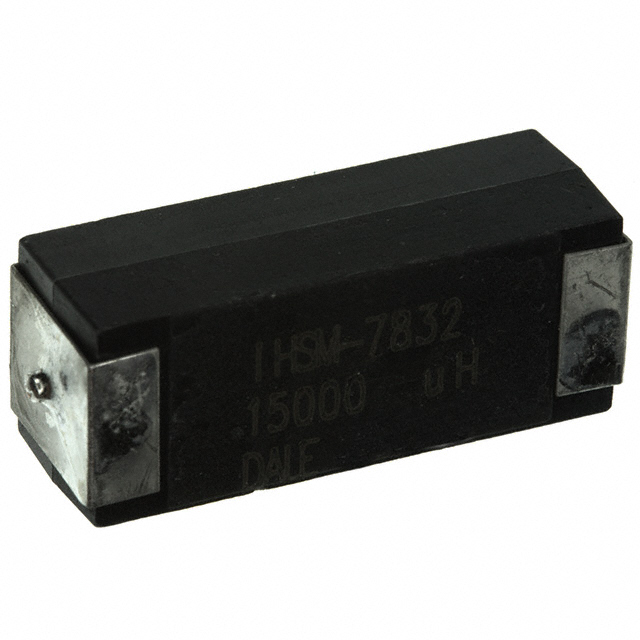

Specification	IHSM7832ER153L

Current - Saturation (Isat)	0.055 mA
Current Rating	120 mA
DC Resistance (DCR) (Max)	37.8 Ohm
Height - Seated (Max)	0.285 in
Inductance	15 mH
Inductance Frequency - Test	1 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension Length	0.84 in
Size / Dimension Width	0.32 in
Tolerance	15 %

IHSM-7832 Series

Part	Height - Seated (Max)	Material - Core	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Package / Case	Current Rating	Mounting Type	Inductance Frequency - Test	Tolerance	Current - Saturation (Isat)	Size / Dimension Width	Size / Dimension Length	DC Resistance (DCR) (Max)	Inductance
Vishay Dale IHSM7832PJ3R9L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	7.3 A	Surface Mount	1 kHz	15 %	2.6 A	0.32 in	0.84 in	20 mOhm	3.9 µH
Vishay Dale IHSM7832EB271L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	950 mA	Surface Mount	1 kHz	15 %	0.4 mA	0.32 in	0.84 in	599 mOhm	270 µH
Vishay Dale IHSM7832ER153L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	120 mA	Surface Mount	1 kHz	15 %	0.055 mA	0.32 in	0.84 in	37.8 Ohm	15 mH
Vishay Dale IHSM7832PJ1R8L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	8.5 A	Surface Mount	1 kHz	15 %	4 A	0.32 in	0.84 in	13 mOhm	1.8 µH
Vishay Dale IHSM7832ER822L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	0.17 A	Surface Mount	1 kHz	15 %	0.0725 mA	0.32 in	0.84 in	21.8 Ohm	8.2 mH
Vishay Dale IHSM7832EB1R5L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	8.6 A	Surface Mount	1 kHz	15 %	4.4 A	0.32 in	0.84 in	12 mOhm	1.5 µH
Vishay Dale IHSM7832RG100K	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	5 A	Surface Mount	1 kHz	10 %	1.7 A	0.32 in	0.84 in	36 mOhm	10 µH
Vishay Dale IHSM7832RG123L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	140 mA	Surface Mount	1 kHz	15 %	62.5 mA	0.32 in	0.84 in	28.4 Ohm	12 mH
Vishay Dale IHSM7832EB471L	0.285 in	Ferrite	125 °C	-55 °C	Unshielded	Nonstandard	0.74 A	Surface Mount	1 kHz	15 %	0.31 mA	0.32 in	0.84 in	1.1 Ohm	0.47 mH
