43-00130
ActiveAmphenol CONEC

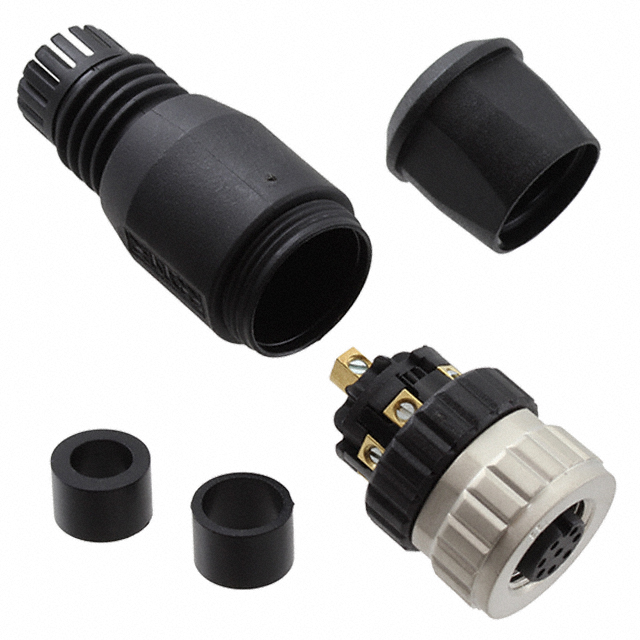

SENSOR CONN, M12, RCPT, 8POS, CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-00130
ActiveAmphenol CONEC
SENSOR CONN, M12, RCPT, 8POS, CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-00130 |
|---|---|
| Backshell Material, Plating | Nylon 6, Polyamide (PA6), Glass Filled |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 2 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA6), Nylon 6 |
| Material Flammability Rating | UL94 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA6), Nylon 6, Glass Filled |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 30 VDC |
43-0013 Series
| Part | Primary Material | Orientation | Termination | Shell Size - Insert | Current Rating (Amps) | Mounting Type | Shielding | Features | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Backshell Material, Plating | Ingress Protection | Connector Type | Contact Finish - Mating | Insert Material | Number of Positions | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Voltage Rating | Shell Material | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | Plastic | A | Screw | M12-8 | 2 A | Free Hanging (In-Line) | Unshielded | Backshell Coupling Nut | Copper Zinc | Black Silver | -30 ░C | 85 °C | UL94 | Glass Filled Nylon 6 Polyamide (PA6) | IP67 - Dust Tight Waterproof | Female Sockets Plug | Gold | Polyamide (PA6) Nylon 6 | 8 | 4 mm | 0.315 in | 0.157 in | 8 mm | 30 VDC | Polyamide (PA6) Nylon 6 Glass Filled | |
Amphenol CONEC | Metal | A | Screw | M12-8 | 2 A | Free Hanging (In-Line) Right Angle | Unshielded | Copper Zinc | Black Silver | -30 ░C | 85 °C | UL94 HB UL94 V-0 | IP67 - Dust Tight Waterproof | Male Pins Receptacle | Gold | Polyamide (PA6) Nylon 6 | 8 | 4 mm | 0.315 in | 0.157 in | 8 mm | 30 VDC | Gadolinium-Zinc | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
43-0013 Series
8 Position Circular Connector Plug, Female Sockets Screw
