3142-2-00-15-00-00-08-0

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .040DIA GOLD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC .040DIA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3142-2-00-15-00-00-08-0

Board Thickness	0.062 in
Board Thickness	1.57 mm
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Brass Alloy
Flange Diameter [diameter]	0.078 in
Flange Diameter [diameter]	1.98 mm
Insulation	Non-Insulated
Length - Above Flange [custom]	0.094 in
Length - Above Flange [custom]	2.39 mm
Length - Below Flange [x]	0.15 in
Length - Below Flange [x]	3.81 mm
Length - Overall	6.96 mm
Length - Overall	0.274 in
Mounting Hole Diameter [diameter]	1.57 mm
Mounting Hole Diameter [diameter]	0.062 in
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	1.02 mm
Pin Size - Above Flange [diameter]	0.04 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Contact Material	Insulation	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Length - Above Flange [custom]	Length - Above Flange [custom]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Overall	Length - Overall	Board Thickness	Board Thickness	Contact Finish	Terminal Style	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Type	Contact Finish Thickness	Contact Finish Thickness	Length - Below Flange [x]	Length - Below Flange [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Above Flange [x]	Length - Above Flange [x]
Mill-Max Manufacturing Corp. 3142-2-00-15-00-00-08-0	Brass Alloy	Non-Insulated	0.078 in	1.98 mm	Swage	0.094 in	2.39 mm	1.02 mm	0.04 in	6.96 mm	0.274 in	0.062 in	1.57 mm	Gold	Single End	1.57 mm	0.062 in	PC Pin	10 Áin	0.25 Ám	0.15 in	3.81 mm	Through Hole
Mill-Max Manufacturing Corp. 3142-2-00-01-00-00-08-0	Brass Alloy	Non-Insulated	0.078 in	1.98 mm	Swage	0.094 in	2.39 mm	1.02 mm	0.04 in	6.96 mm	0.274 in	0.062 in	1.57 mm	Tin-Lead	Single End	1.57 mm	0.062 in	PC Pin	200 Áin	5.08 Ám	0.15 in	3.81 mm	Through Hole
Mill-Max Manufacturing Corp. 3142-2-00-80-00-00-08-0	Brass Alloy	Non-Insulated	0.078 in	1.98 mm	Swage			1.02 mm	0.04 in					Tin	Single End	1.57 mm	0.062 in	PC Pin	200 Áin	5.08 Ám	0.094 in	2.39 mm	Through Hole	6.27 mm	0.247 in	1.47 mm	0.058 in	3.81 mm	0.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

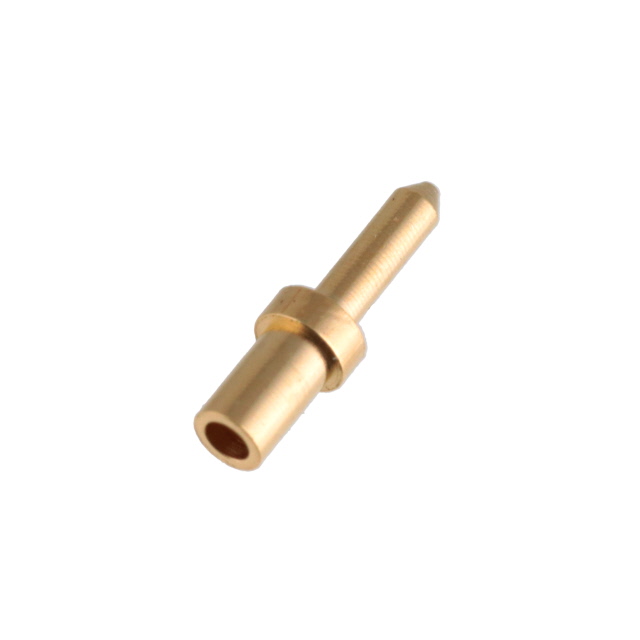

PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
