3RP2540 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Termination Style	Mounting Type	Delay Time (Minimum)	Delay Time (Maximum)	Timing Initiate Method	Contact Rating (Current)	Function	Timing Adjustment Method	Relay Type	Circuit	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply (Option 2)
Siemens 3RP25402AW30	240 VAC	12 VDC	Spring Terminal	DIN Rail	0.05 Sec	10 Min	Input Voltage	3 A	Off-Delay	Screwdriver Slot	Mechanical Relay	SPDT (1 Form C)
Siemens 3RP25402AB30			Spring Terminal	DIN Rail	0.05 Sec	10 Min	Input Voltage	3 A	Off-Delay	Screwdriver Slot	Mechanical Relay	SPDT (1 Form C)	24 VAC	24 VDC	24 DC

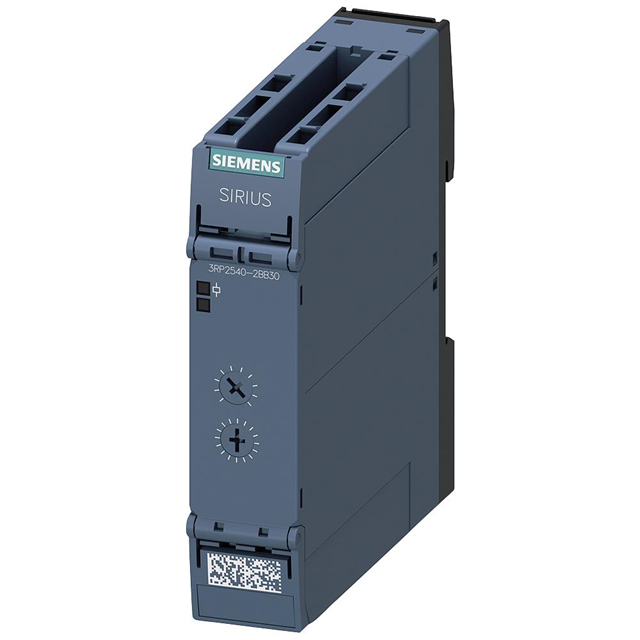

Siemens 3RP25402BB30			Spring Terminal	DIN Rail	0.05 Sec	10 Min	Input Voltage	3 A	Off-Delay	Screwdriver Slot	Mechanical Relay	DPDT (2 Form C)	24 VAC	24 VDC	24 DC
Siemens 3RP25401AB30			Screw Terminal	DIN Rail	0.05 Sec	10 Min	Input Voltage	3 A	Off-Delay	Screwdriver Slot	Mechanical Relay	SPDT (1 Form C)	24 VAC	24 VDC	24 DC
Siemens 3RP25402BW30	240 VAC	12 VDC	Spring Terminal	DIN Rail	0.05 Sec	10 Min	Input Voltage	3 A	Off-Delay	Screwdriver Slot	Mechanical Relay	DPDT (2 Form C)
