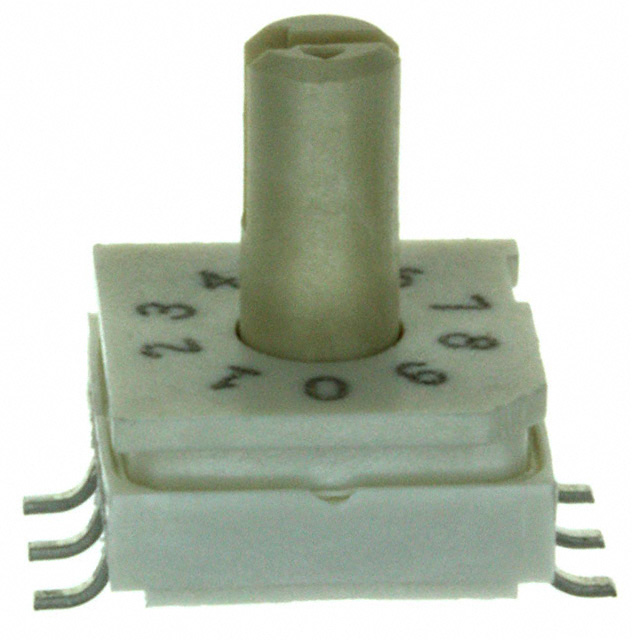

94HBB10WT

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROTARY DIP BCD 0.1A 50V

Part	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Contact Material	Actuator Level	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Circuit	Features	Number of Positions	Length	Length	Termination Style	Height Above Board	Height Above Board	Actuator Type	Voltage Rating	Mounting Type	Contact Finish	Washable
Grayhill Inc. 94HBB10WT	10000 Steps	0.1 in	Full	2.54 mm	Copper Alloy	Raised	100 mA	85 °C	-40 °C	Plastic	BCD	Sealed	10	0.39 "	9.91 mm	Gull Wing	0.225 in	5.72 mm	Rotary with Shaft	50 V	Surface Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Surface Mount Rotary with Shaft Actuator 100mA 50VDC
