1243/4 SL005

Active

ALPHA WIRE

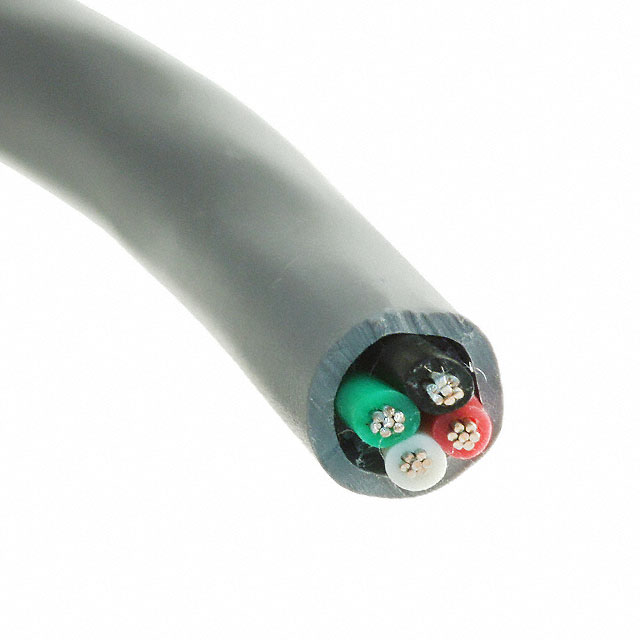

CABLE 4COND 22AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 22AWG SLATE SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1243/4 SL005	1243/4 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	4	4
Shield Coverage	80 %	80 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 4COND 22AWG SLATE SHLD

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Voltage	Jacket Color	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Number of Conductors	Length [x]	Length [x]	Cable Type	Conductor Insulation	Shield Coverage	Shield Type	Length	Length
ALPHA WIRE 1243/4 SL005	0.02 in	0.508 mm	Communication, Control	300 V	Slate	Copper, Tinned	Poly-Vinyl Chloride (PVC)	22 AWG	7	30 AWG	Copper, Tinned	4	30.5 m	100 ft	Multi-Conductor	Poly-Vinyl Chloride (PVC)	80 %	Braid
ALPHA WIRE 1243/4 SL001	0.02 in	0.508 mm	Communication, Control	300 V	Slate	Copper, Tinned	Poly-Vinyl Chloride (PVC)	22 AWG	7	30 AWG	Copper, Tinned	4			Multi-Conductor	Poly-Vinyl Chloride (PVC)	80 %	Braid	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.85

General part information

4 Conductor Multi-Conductor Cable Slate 22 AWG Braid 100.0' (30.5m)
