CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-106507-2
ActiveTE Connectivity AMP Connectors
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-106507-2 | 106507 Series |
|---|---|---|
| Backset Spacing | 0.406 in | 0.406 in |
| Backset Spacing | 10.3 mm | 10.3 mm |
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 6 A | 6 A |
| Dielectric Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B | DB, B |
| Shell Size, Connector Layout [custom] | 3 | 3 |
| Termination | Solder | Solder |
| Voltage Rating | 125 VDC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.65 | |
| 10 | $ 4.92 | |||
| 30 | $ 4.79 | |||
| 60 | $ 4.66 | |||
| 120 | $ 4.56 | |||
106507 Series
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Contact Material | Termination | Voltage Rating | Connector Type | Number of Rows | Dielectric Material | Connector Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Contact Type | Backset Spacing | Backset Spacing | Current Rating (Amps) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-106507-2 | 0.76 Ám | 30 Áin | B, DB | 3 | Female Screwlock (4-40), Mating Side | Phosphor Bronze | Solder | 125 VDC | Receptacle, Female Sockets | 2 | Polyester, Glass Filled | D-Sub | Panel Mount, Right Angle, Through Hole | 105 ░C | -55 °C | Gold | Black | Signal | 0.406 in | 10.3 mm | 6 A | UL94 V-0 |
TE Connectivity AMP Connectors 8-106507-2 | 0.76 Ám | 30 Áin | B, DB | 3 | Female Screwlock (4-40), Mating Side | Phosphor Bronze | Solder | 125 VDC | Receptacle, Female Sockets | 2 | Polyester, Glass Filled | D-Sub | Panel Mount, Right Angle, Through Hole | 105 ░C | -55 °C | Gold | Black | Signal | 0.406 in | 10.3 mm | 6 A | UL94 V-0 |
Description
General part information
106507 Series

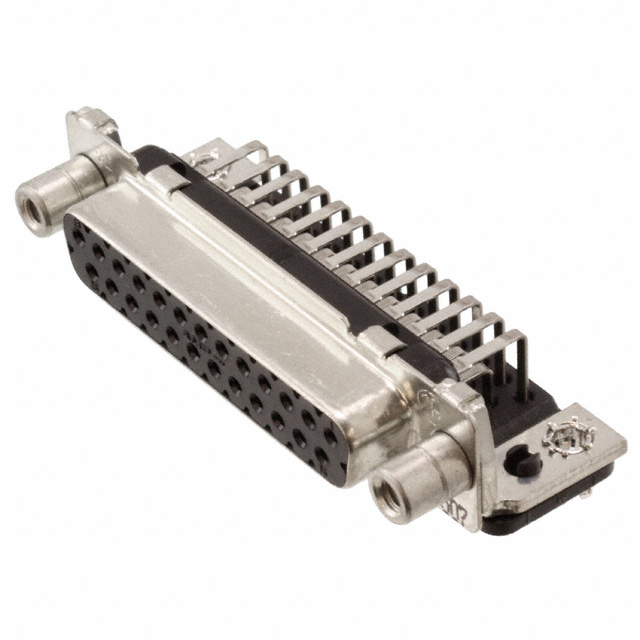

25 Position D-Sub Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
