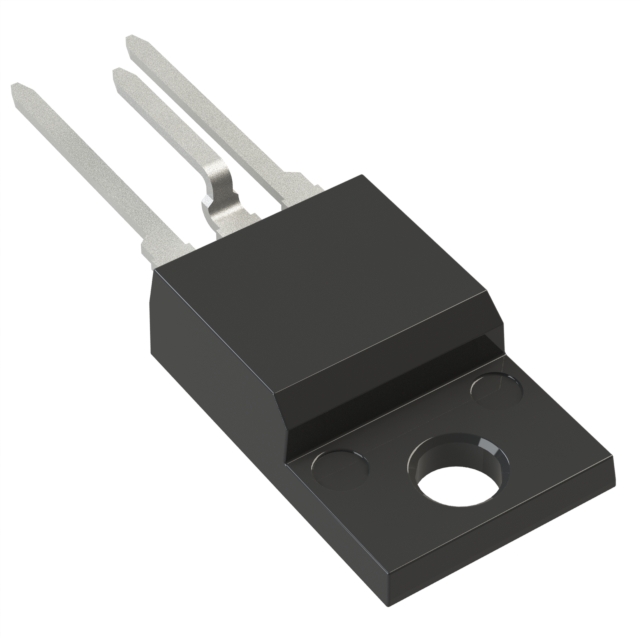

BT236X-800G/L02Q

Active

WeEn Semiconductors

TRIAC 800V 6A TO220F

Search across all available documentation for this part.

Active

WeEn Semiconductors

TRIAC 800V 6A TO220F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3600	$ 0.35

General part information

TRIAC Standard 800 V 6 A Through Hole TO-220F

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BT236X-800G/L02Q	BT236 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max)	-	25 - 50 mA
Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA	100 mA
Current - Hold (Ih) (Max) [Max]	40 mA	20 - 40 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	71 A	71 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	65 A	65 A
Current - On State (It (RMS)) (Max)	6 A	6 A
Mounting Type	Through Hole	Through Hole
Operating Temperature	125 ¯C	125 ¯C
Package / Case	TO-220-3 Full Pack, Isolated Tab, Formed Leads	TO-220-3 Full Pack, Isolated Tab, TO-220-3 Full Pack, Isolated Tab, Formed Leads
Supplier Device Package	TO-220F	TO-220F
Triac Type	Standard	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 - 1.5 V
Voltage - Off State	800 V	600 - 800 V

TRIAC 800V 71A 3-PIN(3+TAB) TO-220F RAIL

Part	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Triac Type	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature	Configuration	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max)	Package / Case	Current - Gate Trigger (Igt) (Max) [Max] [x]
WeEn Semiconductors BT236X-800,127	TO-220F	1.5 V	800 V	Standard	35 mA	125 ¯C	Single	Through Hole	71 A	65 A	20 mA	6 A	TO-220-3 Full Pack, Isolated Tab
WeEn Semiconductors BT236X-800G,127	TO-220F	1.5 V	800 V	Standard	50 mA	125 ¯C	Single	Through Hole	71 A	65 A	40 mA	6 A	TO-220-3 Full Pack, Isolated Tab
WeEn Semiconductors BT236X-600F,127	TO-220F	1.5 V	600 V	Standard	25 mA	125 ¯C	Single	Through Hole	71 A	65 A	20 mA	6 A	TO-220-3 Full Pack, Isolated Tab
WeEn Semiconductors BT236X-600,127	TO-220F	1.5 V	600 V	Standard	35 mA	125 ¯C	Single	Through Hole	71 A	65 A	20 mA	6 A	TO-220-3 Full Pack, Isolated Tab
WeEn Semiconductors BT236X-800G/L02Q	TO-220F	1 V	800 V	Standard		125 ¯C	Single	Through Hole	71 A	65 A	40 mA	6 A	TO-220-3 Full Pack, Isolated Tab, Formed Leads	100 mA
WeEn Semiconductors BT236X-600G,127	TO-220F	1.5 V	600 V	Standard	50 mA	125 ¯C	Single	Through Hole	71 A	65 A	40 mA	6 A	TO-220-3 Full Pack, Isolated Tab
