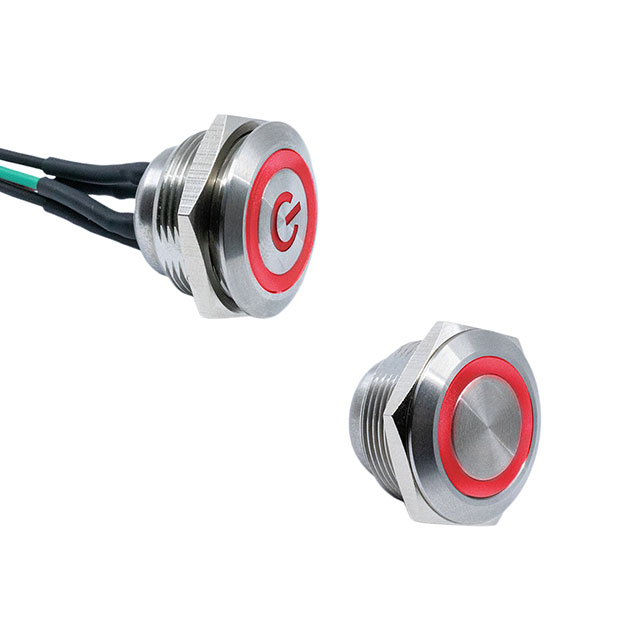

SV7FW3SS-3H1

Active

E-Switch

SWITCH PB SPST 2A 36V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPST 2A 36V

Technical Specifications

Parameters and characteristics for this part

Specification	SV7FW3SS-3H1

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Illumination Type, Color	Blue/Red, LED
Illumination Voltage (Nominal)	2 VDC, 3.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

Part	Circuit	Color - Actuator/Cap	Current Rating (Amps)	Type	Illumination Voltage (Nominal)	Termination Style	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Electrical Life	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Mounting Type	Voltage Rating - DC	Illumination Type, Color
E-Switch SV7FW3SS-3H1	SPST-NO	Silver	2 A	Anti-Vandal Illuminated	2 VDC 3.1 VDC	Wire Leads	IP67 - Dust Tight Waterproof	22.2 mm	Button Flush Round	200000 Cycles	Off-Mom	-20 C	70 °C	No Marking	Panel Mount Front	36 VDC	Blue/Red LED
E-Switch SV7FW3SS-631	SPST-NO	Silver	2 A	Anti-Vandal Illuminated	3.1 VDC	Wire Leads	IP67 - Dust Tight Waterproof	22.2 mm	Button Flush Round	200000 Cycles	Off-Mom	-20 C	70 °C	Power Symbol	Panel Mount Front	36 VDC	Green LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
