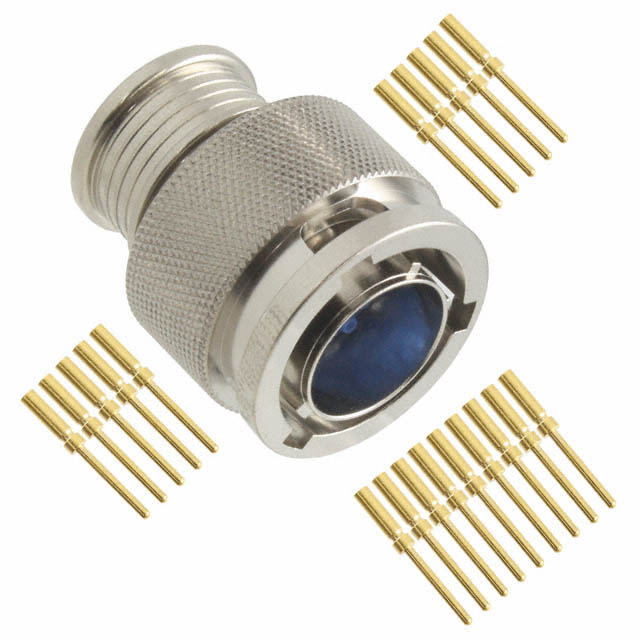

Specification	MKJ3A6F9-19PN

Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Current Rating	5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	19
Shell Size - Insert (Minimum)	9
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 V

MKJ3A Series

...

Part	Applications	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Insert Material	Connector Type	Primary Material	Number of Positions	Contact Finish Thickness - Mating	Contact Material	Shell Finish	Fastening Type	Current Rating	Termination	Shell Material	Orientation	Ingress Protection	Color	Contact Finish - Mating	Voltage Rating	Mounting Feature
ITT Cannon, LLC MKJ3A6F6-7SY
ITT Cannon, LLC MKJ3A7W6-7SY
ITT Cannon, LLC MKJ3A6Z7-10SN	Aerospace Communication Systems Industrial Instrumentation Medical	Free Hanging (In-Line)	-65 °C	175 °C	Shielded	7	10 S	Thermoplastic	Female Sockets Plug	Metal	10	50 µin	Copper Alloy	Black Zinc Nickel	Bayonet Lock	5 A	Crimp	Aluminum Alloy	N (Normal)	Environment Resistant	Black	Gold
ITT Cannon, LLC MKJ3A7W10-26SN		Panel Mount	-55 °C	150 °C	Shielded	10	26		Female Sockets Receptacle	Metal	26	50 µin		Olive Drab Cadmium	Bayonet Lock	5 A	Crimp	Aluminum Alloy	N (Normal)	Environment Resistant	Olive Drab	Gold	500 V	Bulkhead Front Side Nut
ITT Cannon, LLC MKJ3A6W7-10PX
ITT Cannon, LLC MKJ3A7F6-4SZ
ITT Cannon, LLC MKJ3A7F10-26SY
ITT Cannon, LLC MKJ3A7W6-7SN		Panel Mount	-55 °C	150 °C	Shielded	6	7		Female Sockets Receptacle	Metal	7	50 µin		Olive Drab Cadmium	Bayonet Lock	5 A	Crimp	Aluminum Alloy	N (Normal)	Environment Resistant	Olive Drab	Gold	500 V	Bulkhead Front Side Nut
ITT Cannon, LLC MKJ3A7W6-7SX
ITT Cannon, LLC MKJ3A7W9-19PZ
