MKJ3A7W6-7SN
ActiveITT Cannon, LLC

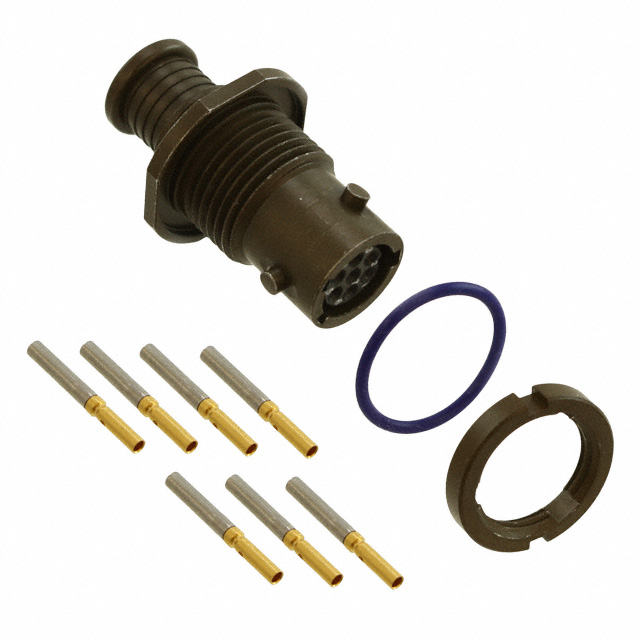

CONN RCPT FMALE 7POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
MKJ3A7W6-7SN
ActiveITT Cannon, LLC
CONN RCPT FMALE 7POS GOLD CRIMP
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | MKJ3A7W6-7SN |
|---|---|
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 7 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 7 |
| Shell Size - Insert [Min] | 6 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
MKJ3A Series
...
| Part | Ingress Protection | Contact Finish - Mating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Applications | Contact Material | Color | Number of Positions | Connector Type | Insert Material | Fastening Type | Mounting Type | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Current Rating (Amps) | Shielding | Shell Finish | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Voltage Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | Environment Resistant | Gold | Crimp | -65 ░C | 347 °F | Metal | Aerospace Communication Systems Industrial Instrumentation Medical | Copper Alloy | Black | 10 | Female Sockets Plug | Thermoplastic | Bayonet Lock | Free Hanging (In-Line) | Aluminum Alloy | 1.27 µm | 50 µin | N | 5 A | Shielded | Black Zinc Nickel | ||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | Environment Resistant | Gold | Crimp | -55 °C | 150 °C | Metal | Olive Drab | 7 | Receptacle Female Sockets | Bayonet Lock | Aluminum Alloy | 1.27 µm | 50 µin | N | 5 A | Shielded | Olive Drab Cadmium | 7 | 6 | 500 VAC | Bulkhead - Front Side Nut | ||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC | |||||||||||||||||||||||||
ITT Cannon, LLC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MKJ3A Series
7 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
