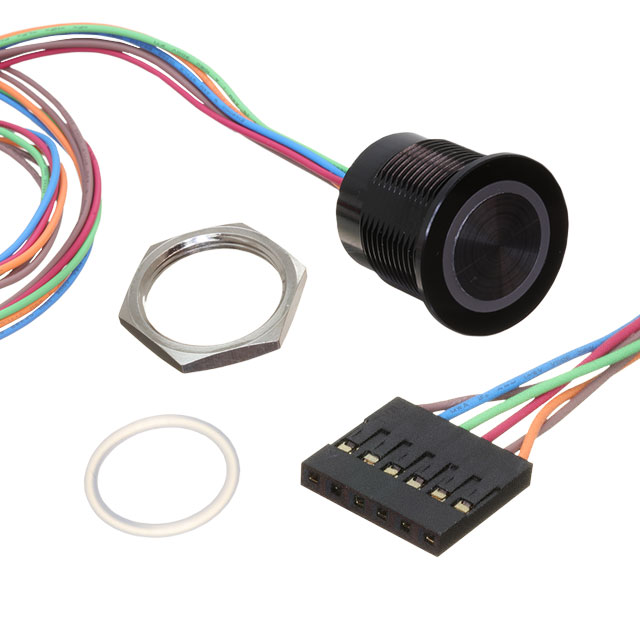

AVP19MAIBCE0DT5A04

Active

TE Connectivity Raychem Cable Protection

PUSHBUTTON SWITCH, SPST, 1A, 24VDC, WIRE TERMINAL, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AVP19MAIBCE0DT5A04

Active

TE Connectivity Raychem Cable Protection

PUSHBUTTON SWITCH, SPST, 1A, 24VDC, WIRE TERMINAL, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVP19MAIBCE0DT5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Electrical Life	50000000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Type	Illuminated, Piezo, Anti-Vandal
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

AVP19M Series

Part	Ingress Protection	Voltage Rating - AC	Mounting Type	Type	Color - Actuator/Cap	Illumination Type, Color	Actuator Marking	Voltage Rating - DC	Circuit	Actuator Type	Electrical Life	Switch Function	Panel Cutout Dimensions [diameter]	Mechanical Life
TE Connectivity Raychem Cable Protection AVP19MAIOFE0DT5A04	IP68 - Dust Tight Waterproof	24 V	Panel Mount Front	Anti-Vandal Illuminated Piezo	Silver	Blue Green LED Red	No Marking	24 V	SPST-NO	Button Flush Round	50000000 Cycles	Off-Mom	19.2 mm	50000000 Cycles
TE Connectivity Raychem Cable Protection AVP19MS04CE0DT5A04	IP68 - Dust Tight Waterproof	24 V	Panel Mount Front	Anti-Vandal Illuminated Piezo	Silver	Blue Green LED Red	No Marking	24 V	SPST-NO	Button Flush Round	50000000 Cycles	Off-Mom	19.2 mm	50000000 Cycles
TE Connectivity Raychem Cable Protection AVP19MS16FE0DT5A04	IP68 - Dust Tight Waterproof	24 V	Panel Mount Front	Anti-Vandal Illuminated Piezo	Silver	Blue Green LED Red	No Marking	24 V	SPST-NO	Button Flush Round	50000000 Cycles	Off-Mom	19.2 mm	50000000 Cycles
TE Connectivity Raychem Cable Protection AVP19MAIBC000T5A04	IP68 - Dust Tight Waterproof	24 V	Panel Mount Front	Anti-Vandal Piezo	Silver		No Marking	24 V	SPST-NO	Button Flush Round	50000000 Cycles	Off-Mom	19.2 mm	50000000 Cycles
TE Connectivity Raychem Cable Protection AVP19MAIBCE0DT5A04	IP68 - Dust Tight Waterproof	24 V	Panel Mount Front	Anti-Vandal Illuminated Piezo	Silver	Blue Green LED Red	No Marking	24 V	SPST-NO	Button Flush Round	50000000 Cycles	Off-Mom	19.2 mm	50000000 Cycles
TE Connectivity Raychem Cable Protection AVP19MS04FE0DT5A04	IP68 - Dust Tight Waterproof	24 V	Panel Mount Front	Anti-Vandal Illuminated Piezo	Silver	Blue Green LED Red	No Marking	24 V	SPST-NO	Button Flush Round	50000000 Cycles	Off-Mom	19.2 mm	50000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.66
		10	$ 43.69

Description

General part information

AVP19M Series

Pushbutton Switch SPST-NO Piezo, Anti-Vandal, Illuminated Panel Mount, Front
