AL1665+AL5822EV1

Active

Diodes Inc

EVAL BOARD AL1665 AL5822

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD AL1665 AL5822

Technical Specifications

Parameters and characteristics for this part

Specification	AL1665+AL5822EV1

Current - Output / Channel [custom]	1 A
Features	Dimmable
Outputs and Type	Non-Isolated
Outputs and Type	1
Supplied Contents	Board(s)
Utilized IC / Part	AL5822, AL1665
Voltage - Input [Max]	305 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output [Max]	42 V
Voltage - Output [Min]	20 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Features	Current - Output / Channel [custom]	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part
Diodes Inc AL1665+AL5822EV1	305 VAC	90 VAC	42 V	20 V	Dimmable	1 A	Non-Isolated	1	Board(s)	AL1665 AL5822

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 117.48

General part information

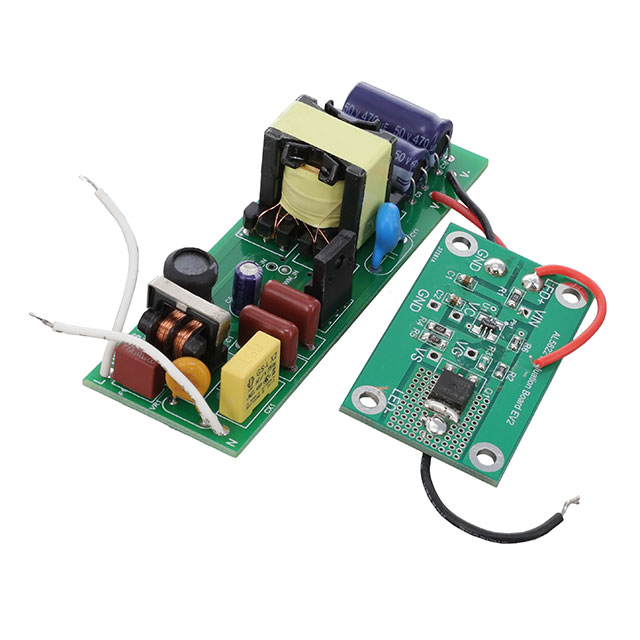

AL1665, AL5822 1, Non-Isolated Outputs LED Driver Evaluation Board

Technical documentation and resources

No documents available
