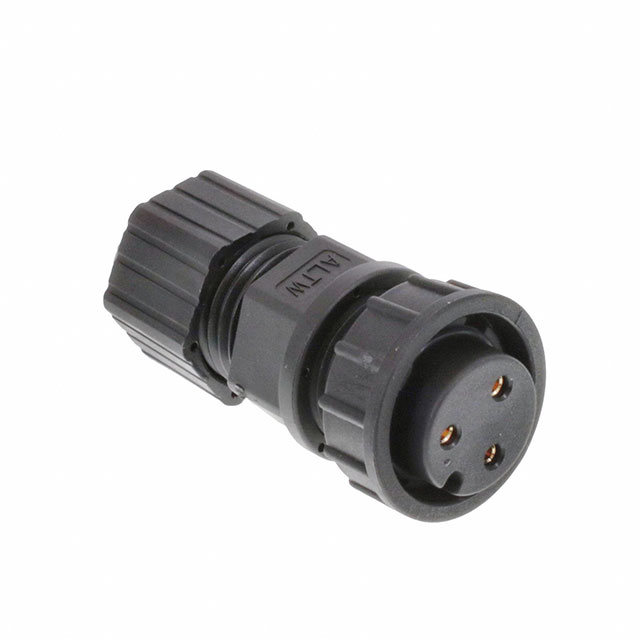

DC-03BFFB-LL7001

Active

Amphenol LTW

CIRCULAR LARGE SIZE FIELD INSTAL

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR LARGE SIZE FIELD INSTAL

Technical Specifications

Parameters and characteristics for this part

Specification	DC-03BFFB-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	10.8 mm
Cable Opening [Max] [custom]	0.425 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Screw

Part	Fastening Type	Backshell Material, Plating	Contact Finish - Mating	Current Rating (Amps)	Color	Insert Material	Shielding	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shell Material	Termination	Ingress Protection	Connector Type	Primary Material	Mounting Type	Shell Size - Insert	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW DC-03BFFB-LL7001	Bayonet Lock	Nylon Polyamide (PA)	Gold	20 A	Black	Polyamide (PA) Nylon Glass Filled	Unshielded	Keyed	Backshell Coupling Nut	-40 °C	105 ░C	Copper Alloy	0.217 in	5.5 mm	10.8 mm	0.425 in	Glass Filled Nylon Polyamide (PA)	Screw	IP67 - Dust Tight Waterproof	Female Sockets Plug	Plastic	Free Hanging (In-Line)	D
Amphenol LTW DC-03BFFB-QL8LPP		Thermoplastic	Silver	20 A	Black	Thermoplastic	Unshielded	Keyed	Backshell	-40 °C	105 ░C	Copper Alloy	0.472 in	12 mm	14 mm	0.551 in		Screw	IP68 - Dust Tight Waterproof	Female Sockets Plug	Plastic	Free Hanging (In-Line)	D	300 VDC
Amphenol LTW DC-03BFFB-QL8MPP		Thermoplastic	Silver	20 A	Black	Thermoplastic	Unshielded	Keyed	Backshell	-40 °C	105 ░C	Copper Alloy						Screw	IP68 - Dust Tight Waterproof	Female Sockets Plug	Plastic	Free Hanging (In-Line)	D	300 VDC	10 mm 12 mm	0.394 in 0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Screw
