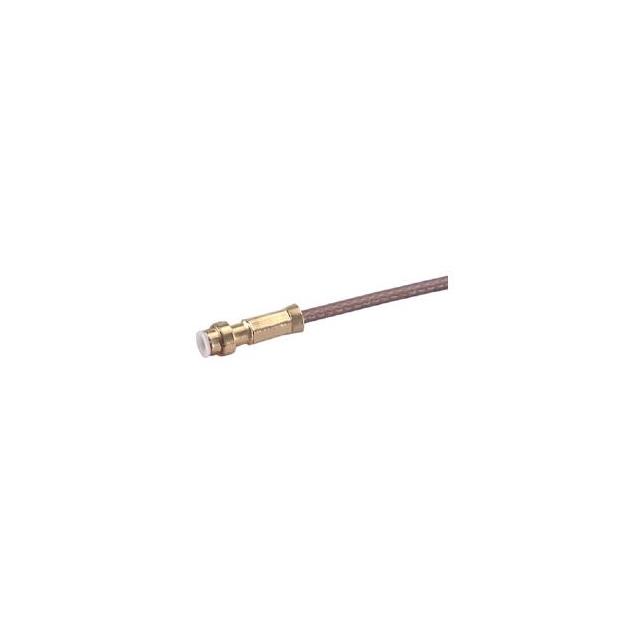

11_MMBX-50-2-2/111_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

11_MMBX-50-2-2/111_NE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	11_MMBX-50-2-2/111_NE	11_MMBX-50 Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Beryllium Copper
Cable Group	RD-316	RD-316, RG-178, RG-174, 188, 316
Cable Group	-	196
Center Contact Material	Brass, Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	MMBX	MMBX
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	12.4 GHz	12.4 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Crimp	Crimp
Voltage Rating	330 VDC	330 VDC

11_MMBX-50-2-2/111_NE

Part	Center Contact Plating	Fastening Type	Impedance	Mounting Type	Housing Color	Shield Termination	Voltage Rating	Body Finish	Dielectric Material	Center Contact Material	Body Material	Connector Style	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Group	Number of Ports	Contact Termination	Cable Group
Huber+Suhner, Inc. 11_MMBX-50-2-2/111_NE	Gold	Snap-On	50 Ohms	Free Hanging (In-Line)	Gold	Crimp	330 VDC	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass	Beryllium Copper	MMBX	12.4 GHz	Male Pin, Plug	155 °C	-55 °C	RD-316	1	Crimp
Huber+Suhner, Inc. 11_MMBX-50-1-1/111_NE	Gold	Snap-On	50 Ohms	Free Hanging (In-Line)	Gold	Crimp	330 VDC	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass	Beryllium Copper	MMBX	12.4 GHz	Male Pin, Plug	155 °C	-55 °C	RG-178	1	Crimp	196
Huber+Suhner, Inc. 11_MMBX-50-2-1/111_NE	Gold	Snap-On	50 Ohms	Free Hanging (In-Line)	Gold	Crimp	330 VDC	Gold	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass	Beryllium Copper	MMBX	12.4 GHz	Male Pin, Plug	155 °C	-55 °C	188, 316, RG-174	1	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 20.27

General part information

MMBX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
